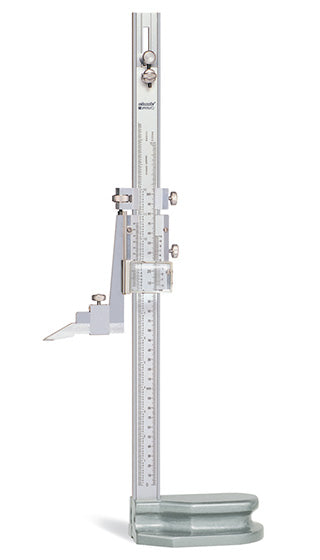

Yamayo Vernier Height Gauges
Regular price
Rs. 0.00
+ 18% GST
BEST OFFERS FOR YOU!
Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.
Product Description
- Right hand type for easy use, clear crisp black graduations on a Satin Chrome finish for glare free reading.
- Provided with carbide tipped scriber.
- Fine adjustment carriage to feed the slider finely.
- Equipped with adjustable sliding scale.
- Provided with magnifier reading glass for easy reading.
- Super solid base for greater stability.
Technical Specifications
| Order No. | Range | Graduation | Accuracy (±) | a1 | a2 | b | c | d | e1 | e2 | L |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 201-300 | 300mm/12” | 0.02mm/0.001” | 0.04mm | 17 | 80 | 22 | 74 | 28 | 50 | 140 | 545 |
| 201-450 | 450mm/18” | 0.02mm/0.001” | 0.05mm | 19 | 95 | 24 | 90 | 35 | 57 | 170 | 705 |
| 201-600 | 600mm/24” | 0.02mm/0.001” | 0.05mm | 19 | 95 | 24 | 90 | 35 | 57 | 170 | 860 |
| 201-1000 | 1000mm/40” | 0.02mm/0.001” | 0.07mm | 19 | 95 | 24 | 90 | 35 | 57 | 170 | 1750 |
(Unit: mm)
