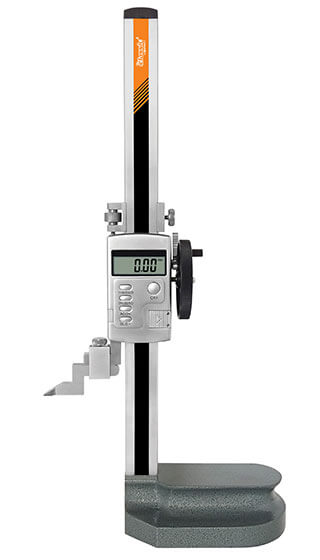

Yamayo Single Beam Digimatic Height Gauges with hand wheel
Regular price
Rs. 0.00
+ 18% GST
BEST OFFERS FOR YOU!
Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.
Product Description
- Allows smooth height measurements by using slider adjustment wheel.
- Carbide Tipped scriber.
- Provided with a fine adjustment carriage to feed the slider finely.
- Power supply: One LR44 Battery.
- Function: On/Off, Origin (Zero setting), Data output, inch/mm.
Technical Specifications
| Order No. | Range | Resolution | Accuracy (±) | a | b | L |
|---|---|---|---|---|---|---|
| 252-300 | 300mm/12” | 0.01mm/0.0005” | 0.04mm | 172 | 53 | 535 |
| 252-600 | 600mm/24” | 0.01mm/0.0005” | 0.05mm | 178 | 53 | 835 |
(Unit: mm)
