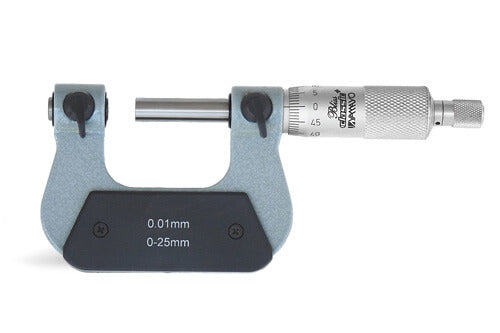

Yamayo Screw Thread Micrometer
Regular price
Rs. 0.00
+ 18% GST
BEST OFFERS FOR YOU!
Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.
Product Description
- Measures pitch diameter of various screw threads
- Supplied with set of 5 matching anvils/spindle tips for pitch measurements.
- Supplied with 60ᴼ setting standard (except for 0-25mm).
- Ratchet stop for constant force.
Technical Specifications
| Order No. | Range | Graduation | Accuracy (±) | a | L | Remarks |
|---|---|---|---|---|---|---|
| 322-025 | 0-25mm | 0.01mm | 4μm | 26 | 42 | 5(mm/TPI) set of Matching Anvils/Spindle included 0.4-0.5/64-48, 0.6-0.9/44-28, 1-1.75/24-14, 2-3/13-9, 3.5-5/8-5 |
| 322-050 | 25-50mm | 0.01mm | 4μm | 38 | 67 |
(Unit: mm)
