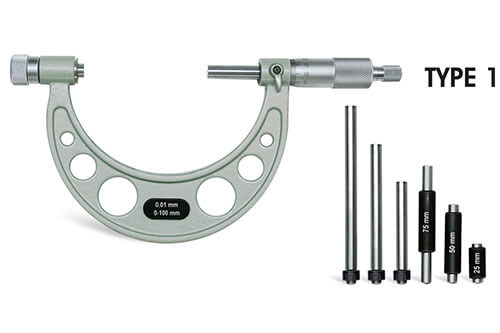

Yamayo Interchangeable Outside Micrometers
Regular price
Rs. 0.00
+ 18% GST
BEST OFFERS FOR YOU!
Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.
Product Description
- Wide measuring range with interchangeable anvils.
- Satin chrome scale.
- Durable frame with insulated grips.
- Carbide tipped measuring faces.
- Provided with Ratchet stop for constant force.
- Supplied with setting standards for each range.
Technical Specifications
Metric (mm)
| Order No. | Range | Graduation | Type | Accuracy (±) | a | L |
|---|---|---|---|---|---|---|
| 311-050 | 0-50mm | 0.01mm | 1 | 4μm | 35 | 58 |
| 311-100 | 0-100mm | 0.01mm | 1 | 5μm | 57 | 108 |
| 311-150 | 0-150mm | 0.01mm | 1 | 6μm | 82 | 158 |
| 311-151 | 50-150mm | 0.01mm | 1 | 6μm | 82 | 158 |
| 311-200 | 100-200mm | 0.01mm | 1 | 7μm | 114 | 208 |
| 311-300 | 150-300mm | 0.01mm | 1 | 9μm | 165 | 308 |
| 311-301 | 200-300mm | 0.01mm | 1 | 9μm | 165 | 308 |
| Order No. | Range | Graduation | Type | Accuracy (±) | a | L |
|---|---|---|---|---|---|---|
| 311-400 | 300-400mm | 0.01mm | 2 | 11μm | 224 | 409 |
| 311-500 | 400-500mm | 0.01mm | 2 | 13μm | 275 | 509 |
| 311-600 | 500-600mm | 0.01mm | 2 | 14μm | 321 | 609 |
| 311-700 | 600-700mm | 0.01mm | 2 | 16μm | 371 | 709 |
| 311-800 | 700-800mm | 0.01mm | 2 | 18μm | 426 | 809 |
| 311-900 | 800-900mm | 0.01mm | 2 | 20μm | 476 | 909 |
| 311-1000 | 900-1000mm | 0.01mm | 2 | 22μm | 576 | 1009 |
(Inch)
| Order No. | Range | Graduation | Type | Accuracy (±) | a | L |
|---|---|---|---|---|---|---|
| 311-002 | 0-2” | 0.0001" | 1 | 0.00015” | 35 | 58 |
| 311-004 | 0-4” | 0.0001" | 1 | 0.0002” | 57 | 108 |
| 311-006 | 0-6” | 0.0001" | 1 | 0.00024” | 82 | 158 |
| 311-048 | 4-8” | 0.0001" | 1 | 0.00028” | 114 | 208 |
| 311-612 | 6-12” | 0.0001" | 1 | 0.00035” | 165 | 308 |
(Unit: mm)
