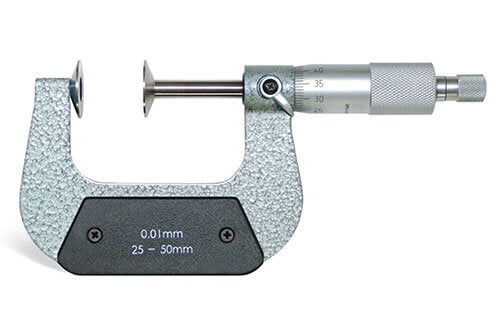

Yamayo Disc Micrometers
Regular price
Rs. 0.00
+ 18% GST
BEST OFFERS FOR YOU!
Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.
Product Description
- Measures “root tangent length” of spur gears and helical gears.
- Equipped with Ratchet Stop for constant measuring force.
Technical Specifications
| Order No. | Range | Graduation | Accuracy (±) | a | b | L | DØ | s | d |
|---|---|---|---|---|---|---|---|---|---|
| 321-025 | 0-25mm | 0.01mm | 4μm | 24 | 3.3 | 34 | 20 | 0.7 | 8 |
| 321-050 | 25-50mm | 0.01mm | 4μm | 32 | 3.3 | 59 | 20 | 0.7 | 8 |
| 321-075 | 50-75mm | 0.01mm | 5μm | 45 | 3.3 | 85 | 20 | 0.7 | 8 |
| 321-100 | 75-100mm | 0.01mm | 5μm | 57 | 3.3 | 110 | 20 | 0.7 | 8 |
| 321-125 | 100-125mm | 0.01mm | 6μm | 70 | 4.3 | 138 | 30 | 0.9 | 12 |
| 321-150 | 125-150mm | 0.01mm | 6μm | 82 | 4.3 | 163 | 30 | 0.9 | 12 |
| 321-175 | 150-175mm | 0.01mm | 7μm | 95 | 4.3 | 188 | 30 | 0.9 | 12 |
| 321-200 | 175-200mm | 0.01mm | 7μm | 107 | 4.3 | 214 | 30 | 0.9 | 12 |
(Unit: mm)
