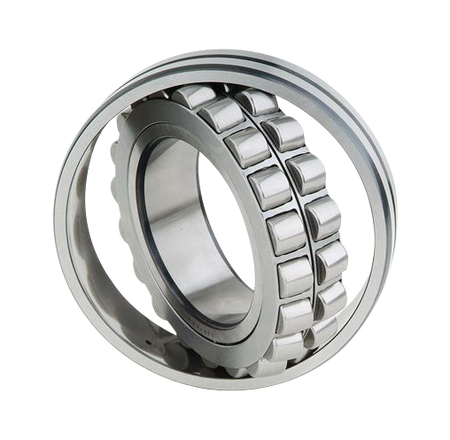

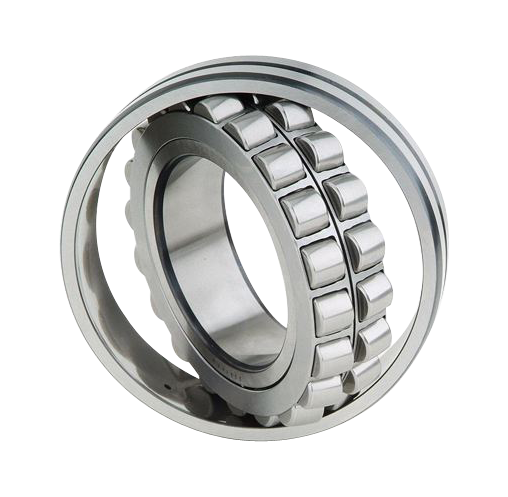

UXG - 24052 MBW33C3 - Spherical Roller Bearing
Regular price
Rs. 35,571.00
+ 18% GST
BEST OFFERS FOR YOU!
Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.
Technical Details:-
| Bearing No. | 24052 |
| Dimensions (mm) | d: 260 D: 400 B: 140 |
| Load ratings (KN) |
Cr: 1840, Cor: 3850 |
| Limiting speeds (r/min) |
Grease: 630 - Oil: 850 |
| Mounting dimensions (mm): |
da (min): 278 Da (max): 382 ra (max): 3 |
| Mass (kg) ≈: | 63 |
PRODUCT DESCRIPTION
Spherical roller bearings have two rows of rollers, mainly supporting the radial load, but can also bear the axial load from any direction. With strong radial load capacity, spherical roller bearings are especially qualified for heavy-duty or vibration-load work but cannot bear the pure axial load. The outer ring of this kind of bearing is spherical, which leads to better self-aligning performance and compensates for coaxial error.
