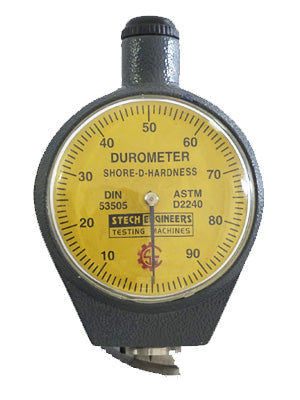

STECH Rubber Hardness Tester, SHORE D - DIII - ANALOGUE DUROMETER
Regular price
Rs. 0.00
+ 18% GST
BEST OFFERS FOR YOU!
Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.
TECHNICAL DESCRIPTION
| Feature | Specification |
|---|---|
| Dial Diameter | 57 mm |
| Total Length | 121 mm |
| Net Weight | 0.213 kg |
| Measuring Range | 0 – 100 Shore Units |
| Accuracy | ± 0.5 Shore |
| Resolution / Least Count | 1 Degree Shore Unit |
| Scale Type | Full 360° Non-Reflective Dial |
| Pointer Type | Standard / Optional Drag Pointer |
| Conforms To | DIN 53505, ASTM D2240, ISO 868 |
| Body Design | Ergonomic Handheld Construction |
| Available Scales | A, D, C, B, AO, DO, O, OO, OOO, OOO-S, M |
| Operating Temperature | 0°C to 50°C |
| Applications | Hard to rigid plastics and tougher rubbers (e.g., pipes, tires, bowling balls) |
Key Features
- Conforms to DIN, ISO, and ASTM international standards
- High accuracy with ±0.5 Shore precision
- Optional drag pointer for peak hold readings
- Large 360° clear dial for easy readability
- Lightweight, ergonomic design for field or laboratory use
- Multiple scales available for a wide range of materials, from very soft gels to hard plastics
SHORE D Model : DIII DUROMETER
As per the latest German Standard DIN 53505 and latest American Standard ASTM D2240.
For soft Rubber, Plastic, Fiber glass and other soft Elastic Materials.
• Range : 0 - 100° Shore Unit
• Least Count : 1° Shore Unit
