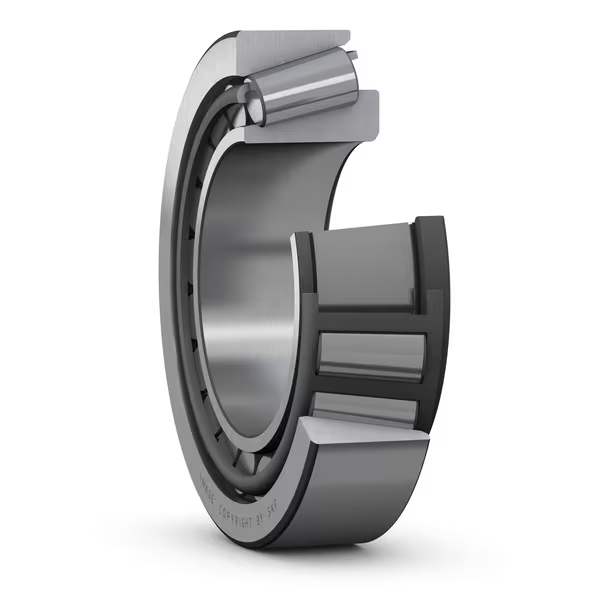

SKF Single Row Tapered Roller Bearing 30218
+ 18% GST
BEST OFFERS FOR YOU!
Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.
TECHNICAL DESCRIPTION
|
Dimensions |
|
| Bore diameter | 90 mm |
| Outside diameter | 160 mm |
| Width, total | 32.5 mm |
| Width, inner ring | 30 mm |
| Width, outer ring |
26 mm |
| Contact angle | 15.6 ° |
| Performance | |
| Basic dynamic load rating | 240 kN |
| Basic static load rating |
245 kN |
| Reference speed |
3 400 r/min |
| Limiting speed |
4 000 r/min |
| SKF performance class |
SKF Explorer |
|
Properties |
|
|
Bearing part Complete bearing |
Complete bearing |
| Number of rows |
1 |
| Locating feature, bearing outer ring |
Without |
| Bore type |
Cylindrical |
| Cage |
Sheet metal |
| Arrangement of contact angle (double-row bearing) Not applicable |
Not applicable |
| Matched arrangement |
No |
| Coating |
Without |
| Sealing |
Without |
| Lubricant |
None |
| Relubrication feature |
Without |
| Unit system |
Metric |
| Indicative carbon footprint for new product |
9 kg CO2e |
|
Logistics |
|
|
Product net weight |
2.49 kg |
| E Class code |
23-05-09-10 |
| UNSPSC code |
31171516 |
PRODUCT DESCRIPTION
Single row tapered roller bearings are designed to accommodate combined radial and axial loads and provide low friction during operation. The inner ring, with rollers and cage, can be mounted separately from the outer ring. These separable and interchangeable components facilitate mounting, dismounting and maintenance. By mounting one single row tapered roller bearing against another and applying a preload, a rigid bearing application can be achieved.
High radial and axial load carrying capacity
Accommodate axial loads in one direction
Low friction and long service life
Separable and interchangeable components
