SKF Radial Shaft Seals, 80X140X13 HMSA10 RG
Regular price
Rs. 953.00
+ 18% GST
BEST OFFERS FOR YOU!
Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.
Technical Specifications
| Type of outside diameter |
Rubber metal reinforced
|
| Lip material |
Nitrile rubber (NBR)
|
| Seal design |
HMSA10
|
| Compliance with standard |
ISO 6194; DIN 3760
|
| Shaft diameter | 80 mm |
| Housing bore diameter | 140 mm |
| Seal width | 13 mm |
| Operating temperature |
min.-40 °C
|
| Operating temperature |
max.100 °C
|
| Operating temperature, short periods |
max.120 °C
|
| Circumferential speed |
max.9.7 m/s
|
| Rotational speed |
max.2 340 r/min
|
| Pressure differential |
0.05 N/mm²
|
| SKF Speedi-Sleeve |
99317
|
Product Description

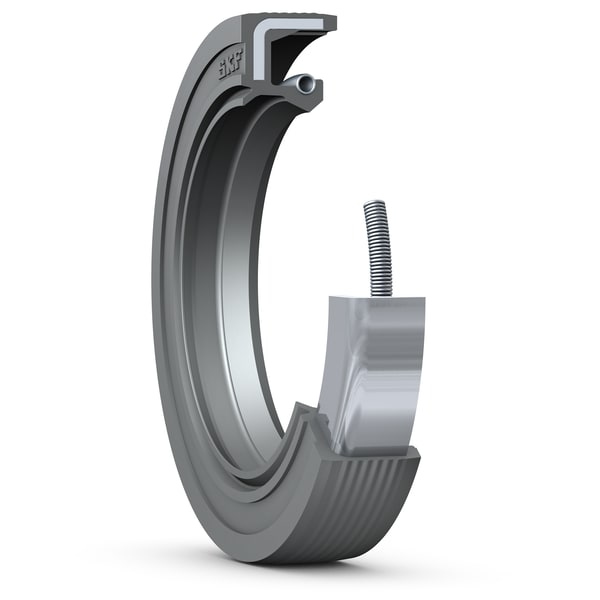

Radial shaft seals are used between rotating and stationary machine components, or between components in relative motion. HMSA10 seals are designed with a rubber outside diameter. They have a conventional sealing lip made of elastomer. A garter spring in the seal and a non-contacting auxiliary lip optimize the sealing against the shaft also in polluted environment.
- High pumping rate
- Higher contamination exclusion with dust lip
- With garter spring
- Accommodate misalignment
