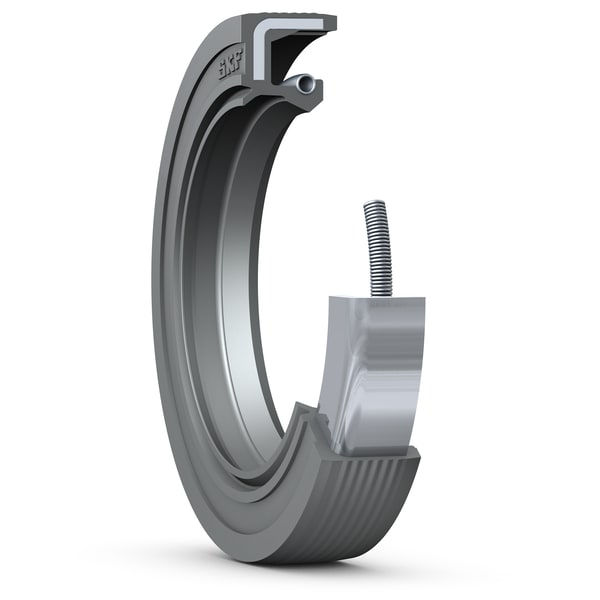

SKF Radial Shaft Seals, 50X90X8 HMSA10 RG
Regular price
Rs. 306.00
+ 18% GST
BEST OFFERS FOR YOU!
Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.
Technical Specifications
| Permissible circumferential speed | 7.84 m/s |
| Housing bore diameter | 90 mm |
| Seal width | 8 mm |
| Shaft diameter | 50 mm |
| Auxiliary lip | Yes |
| Design | HMSA10 |
| Metric/inches measurement system | Metric |
| Sealing lip material | Nitrile rubber (NBR) |
| Type of outside diameter | Rubber metal reinforced |
| Type of outside diameter | Nitrile rubber (NBR) |
| Seal design | HMSA10 |
| Seal design | ISO 6194, DIN 3760 |
| Operating temperature | min. -40 °C |
| Operating temperature | max. 100 °C |
| Operating temperature | max. 120 °C |
| Operating temperature | max. 7.84 m/s |
| Rotational speed | max. 3 000 r/min |
| Rotational speed | max. 3 000 r/min |
| SKF Speedi-Sleeve | SKF Speedi-Sleeve |
Product Description
Radial shaft seals are used between rotating and stationary machine components, or between components in relative motion. HMSA10 seals are designed with a rubber outside diameter. They have a conventional sealing lip made of elastomer. A garter spring in the seal and a non-contacting auxiliary lip optimize the sealing against the shaft also in polluted environment.
- High pumping rate
- Higher contamination exclusion with dust lip
- With garter spring
- Accommodate misalignment
