SKF Radial Shaft Seal , 60X90X8 CRW1 R
Regular price
Rs. 1,318.00
+ 18% GST
BEST OFFERS FOR YOU!
Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.
Technical Details
|
Designation |
60X90X8 CRW1 R |
| Shaft diameter |
60 MM |
| Housing bore diameter |
90 mm |
| Seal width |
8 mm |
| Design | CRW1 R |
| Auxiliary lip | Yes |
| Sealing lip material | Nitrile rubber (NBR) |
| Type of outside diameter |
Rubber metal reinforced |
| Unit system |
Metric |
| Limiting speed | 2760 r/min |
| Maximum operating temperature | 100 °C |
| Minimum operating temperature | -40 °C |
| Permissible circumferential speed | 1771/654 FT /MINT |
| Rotational speed | 2760 r/min |
| Product net weight | 0.07496 lb |
PRODUCT DESCRIPTION

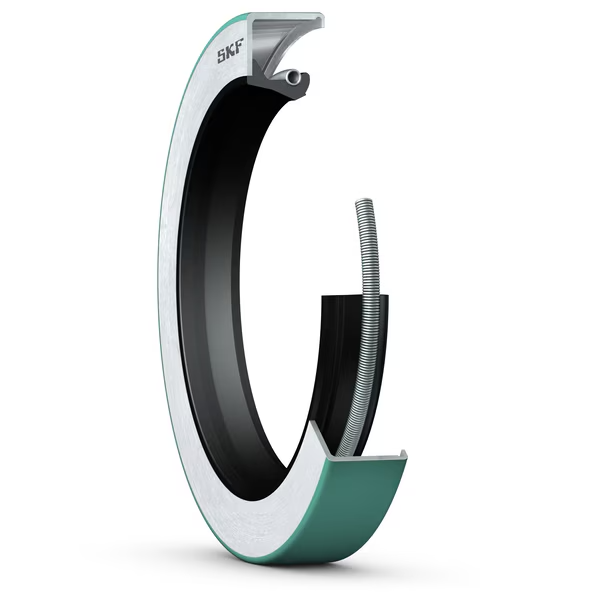

Radial shaft seal with rubber outside diameter and single sealing lip, for oil or grease
Radial shaft seals are used between rotating and stationary machine components, or between components in relative motion. HMSA10 seals are designed with a rubber outside diameter. They have a conventional sealing lip made of elastomer. A garter spring in the seal and a non-contacting auxiliary lip optimize the sealing against the shaft also in polluted environment.
- High pumping rate
- Higher contamination exclusion with dust lip
- With garter spring
- Accommodate misalignment
