SKF Radial Shaft Seal , 48X65X10 HMSA10 RG
Regular price
Rs. 220.00
+ 18% GST
BEST OFFERS FOR YOU!
Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.
Technical Details
|
Designation |
48X65X10 HMSA10 RG |
| Shaft diameter |
48MM |
| Housing bore diameter |
65 mm |
| Seal width |
10 mm |
| Design | HMSA10 RG |
| Auxiliary lip | Yes |
| Sealing lip material | Nitrile rubber (NBR) |
| Type of outside diameter |
Rubber metal reinforced |
| Unit system |
Metric |
| Limiting speed | 3060 r/min |
| Maximum operating temperature | 100 °C |
| Minimum operating temperature | -40 °C |
| Permissible circumferential speed | 7.7 m/s |
| Rotational speed | 3060 r/min |
| Product net weight | 0.0233 kg |
PRODUCT DESCRIPTION

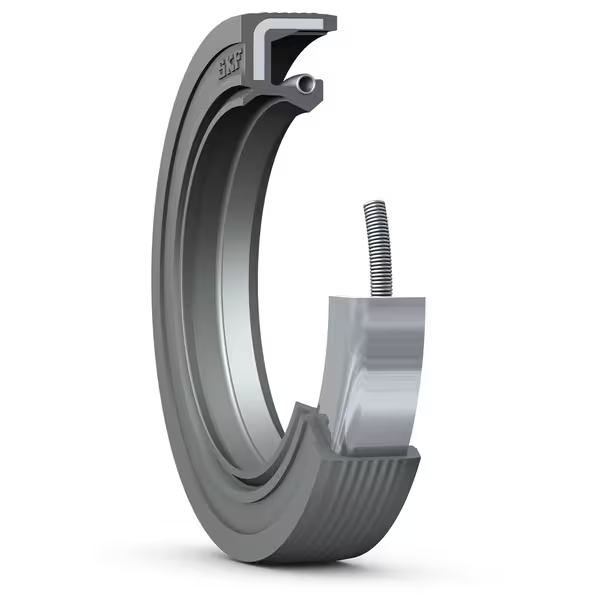

Radial shaft seal with rubber outside diameter and single sealing lip, for oil or grease
Radial shaft seals are used between rotating and stationary machine components, or between components in relative motion. HMSA10 seals are designed with a rubber outside diameter. They have a conventional sealing lip made of elastomer. A garter spring in the seal and a non-contacting auxiliary lip optimize the sealing against the shaft also in polluted environment.
- High pumping rate
- Higher contamination exclusion with dust lip
- With garter spring
- Accommodate misalignment
