SKF Radial shaft seal, 20596
Regular price
Rs. 0.00
+ 18% GST
BEST OFFERS FOR YOU!
Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.
Technical Details
|
Designation |
20596 |
| Shaft diameter |
52.4 mm |
| Housing bore diameter |
76.2 mm |
| Seal width |
9.53 mm |
| Design | CRWA1 |
| Auxiliary lip | No |
| Sealing lip material | Nitrile rubber (NBR) |
| Type of outside diameter |
Metal-cased with sealant coating on the outside diameter |
| Unit system |
Inch |
| Limiting speed | 9360 r/min |
| Maximum operating temperature | 200 °C |
| Minimum operating temperature | -25 °C |
| Permissible circumferential speed | 25.72 m/s |
| Rotational speed | 9360 r/min |
| Product net weight | 0.0272 kg |
PRODUCT DESCRIPTION

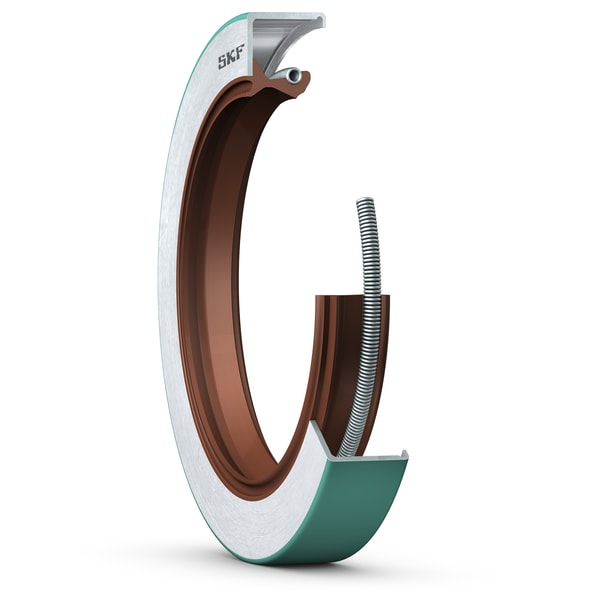

Radial shaft seal with metal case and SKF Wave lip, for oil or grease
Radial shaft seals are used between rotating and stationary machine components, or between components in relative motion. CRW1 seals are designed with a metal case, an SKF WAVE lip made of elastomer with higher pumping rate to reduce heat generation, and a garter spring to optimize sealing against the shaft. Most of the seals feature the SKF Bore Tite coating on the outside diameter that helps fill small imperfections in the housing bore.
- For oil or grease
- With garter spring
- WAVE lip creates higher pumping rate
- WAVE lip has less friction between shaft and lip
- WAVE lip has a lower temperature at the contact point
