SKF Internal bearing puller kit, TMIP 7-60
Regular price
Rs. 151,479.00
Regular price
Sale
Rs. 211,605.00
Sale price
Rs. 151,479.00
+ 18% GST
BEST OFFERS FOR YOU!
Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.
Technical Details
|
Designation |
TMIP 7-60 |
| Width of grip internal |
7.0 – 60.0 mm |
| Workpiece width (max) |
TMIP E7-9: 10 mm TMIP E10-12:11 mm TMIP E15-17: 18 mm TMIP E20-28: 24 mm TMIP E30-40: >35 mm TMIP E45-60: >64 mm |
| Housing depth (max) |
TMIP E7-9: 39 mm TMIP E10-12:45 mm TMIP E15-17: 55 mm TMIP E20-28: 60 mm TMIP E30-40: 97 mm TMIP E45-60:102 mm |
| Needed free depth behind workpiece |
TMIP E7-9: 6 mm
TMIP E10-12: 6 mm
TMIP E15-17: 7.5 mm
TMIP E20-28: 10 mm
TMIP E30-40: 11.5 mm
TMIP E45-60:15 mm
|
| Extractor Hexagonal head size |
Upto size TMIP E20-28: 15 mm from size TMIP 30-40: 19 mm |
| Total extractor length |
TMIP E7-9: 91 mm TMIP E10-12: 91 mm TMIP E15-17: 118 mm TMIP E20-28: 127 mm TMIP E30-40: 143 mm TMIP E45-60:155 mm |
| Slide hammer total length |
417mm 557mm |
| Case dimensions (l x h x w) |
530 x 110 x 360 mm |
| Recommended applications |
For the dismounting of bearings, gears, pulleys and other industrial ring shaped components in industrial, construction and agricultural applications with an interference fit inside a housing |
| Suitable for workpiece dismounting from a Cylindrical seating (straight shaft) |
No |
| Suitable for bearing dismounting from a Tapered seating (conical shaft) |
No |
| Suitable for bearing dismounting from a Sleeve (adapter or withdrawal sleeve) |
No |
| Suitable for workpiece dismounting from a Blind arrangement (housing with shaft) |
No |
| Suitable for workpiece dismounting from a Housing |
Yes |
| Suitable for bearing type(s) |
All |
| Dismounting force generation | Sliding hammer |
| Special features | With unique spring-loaded grip system for easy operation |
| Total number of extractors in kit | 6x : TMIP E7-9, TMIP E10-12 , TMIP E15-17, TMIP E20-28, TMIP E30-40, TMIP E45-60 |
| Slide hammer weight(s) | 1.0 kg 2.05 kg |
| Total number of sliding hammers in kit |
2x :TMIP S1 and TMIP S2 with common handgrip |
| Material | Medium carbon steels and alloy engineering steels, hardened and tempered |
| Material handle |
Opener handle: steel, Slidehammer: thermoplastic elastomer |
| Coating |
Zinc coated |
| Content |

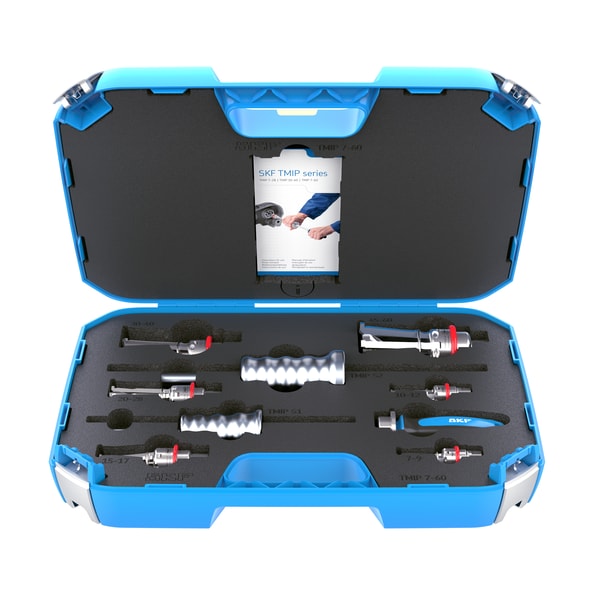

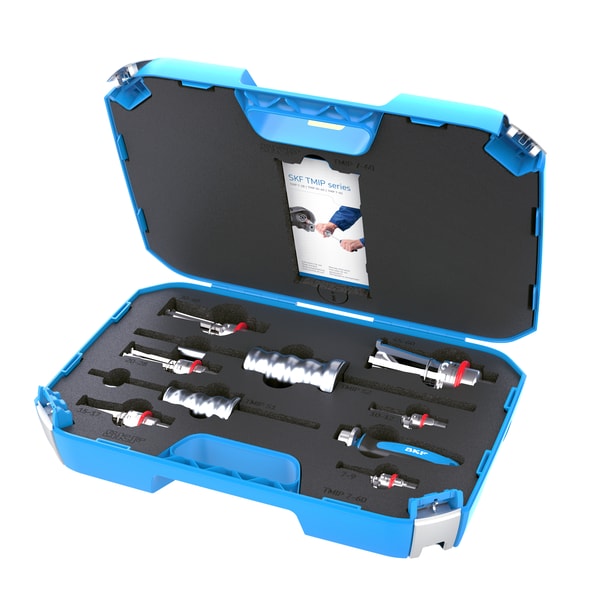

6x Extractors size E7-9 to E45-60 2x slidehammer, sizes S1 and S2 with common handgrip 1x Printed Instructions for Use (language free) 1x Carrying case (size C) |
| Total product weight |
8.8 kg |
PRODUCT DESCRIPTION
Internal bearing puller kit

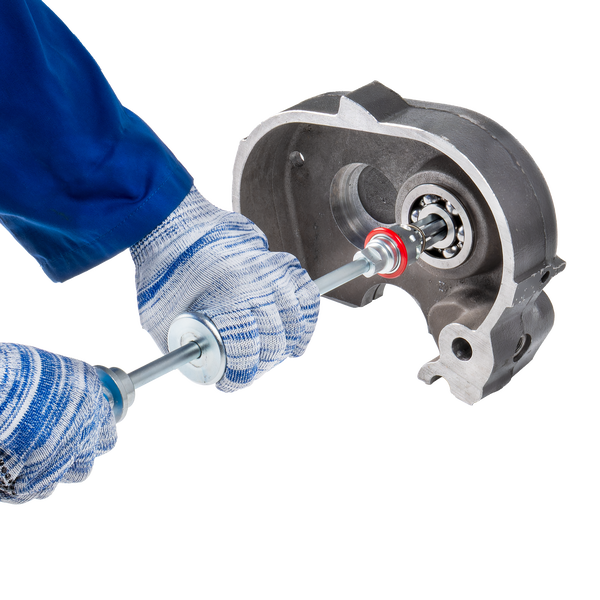

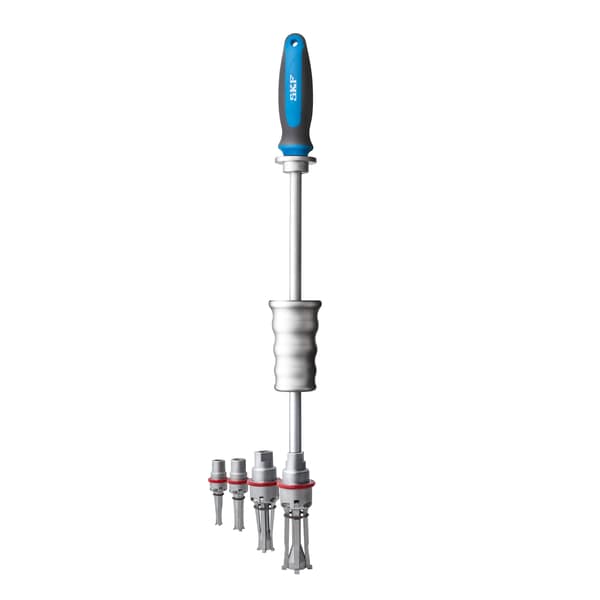

Designed for dismounting bearings from housings where the fit is on the outer ring and the shaft is removed. The pullers are manufactured for optimum strength and durability. A sliding hammer allows high impact forces to be applied and is ergonomically designed to enhance user safety. Comes with a range od extractors and two sliding hammers. Supplied in a sturdy carrying case, the TMIP 7-60 kit is suitable for bearing bores between 7 and 60 mm.
- Reduce dismounting time

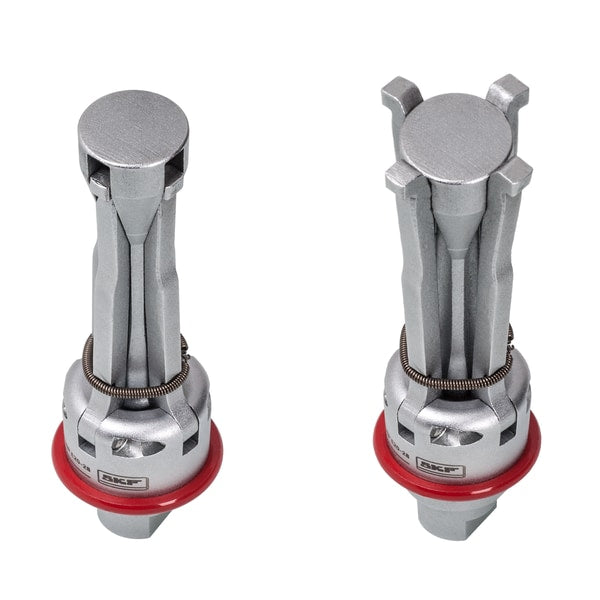

- Unlike most internal bearing pullers, the spring loaded extractors can be quickly and easily fitted to the inner ring in just one quick action
- A strong and secure grip behind the inner ring, allows a high puller force to be applied
- Supplied with matching sliding hammer sizes
- Supplied in handy toolcase
