SKF EasyPull Mechanical Puller, TMMA 60
Regular price
Rs. 56,999.00
Regular price
Sale
Rs. 79,627.00
Sale price
Rs. 56,999.00
+ 18% GST
BEST OFFERS FOR YOU!
Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.
Technical Details
|
Designation |
TMMA 60 |
| Width of grip external |
36.0 – 150.0mm |
| Effective arm length |
150 mm |
| Claw height |
7.5 mm |
| Claw length |
15 mm |
| Total Arm length |
257 mm |
| Claw width | 20 mm |
| Spindle head, hexagon size | 17 |
| Puller or Adapter hexagon size | 27 mm |
| Total spindle length | 325 mm |
| Dismounting force generation |
Spindle |
| Special features |
Spring operated opening mechanism |
| Number of arms |
3 |
| Pulling force (max) |
60 kN |
| Spindle torque (max) |
105 N·m |
| Spindle nose piece |
yes, ⌀24 mm |
| Colour |
Black, with red handle |
| Material |
Alloy engineering steels, hardened and tempered |
| Coating | Black phosphated, red powdercoated |
| Content | 1x Puller TMMA 120 with mechanical spindle 1x Tube of spindle grease LGEV2/0.035 1x Printed instructions for use |
| Product net weight |
4.08 kg |
PRODUCT DESCRIPTION

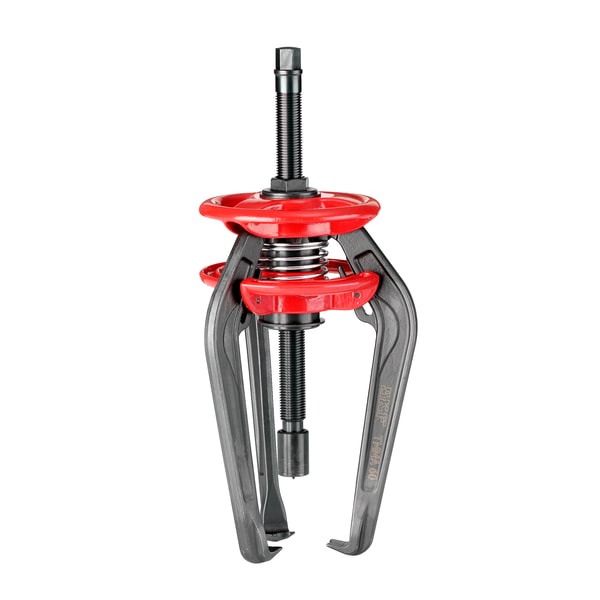

EasyPull mechanical puller
The SKF EasyPull TMMA 60 is one of the most user-friendly and safest bearing dismounting tools on the market. It is very robust and ergonomically designed and features spring-operated arms that enable the user to position the puller behind the component with just one movement. The TMMA 60 is mechanically operated and capable of withdrawl forces up to 60 kN for components with a maximum outer diameter of 150 mm (5.9 in).
- Unique red rings spring-operated opening mechanism allow the TMMA 60 to be placed behind the component with just one movement
- Self-centring capability and nosepiece help to avoid damage to shaft
- Self-locking arms help to prevent puller slipping under load
- Sturdy design allows safe dismounting of components in the tightest applications
- Efficient use of time due to quick dismounting
