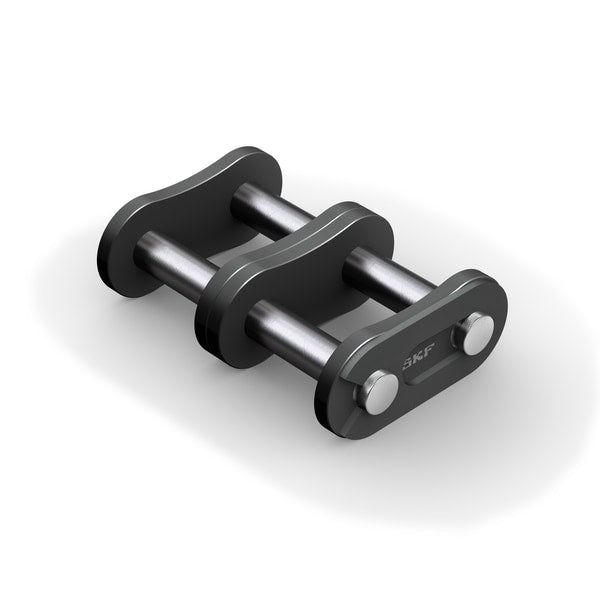

SKF Duplex Connecting Chain Link European Standards, PHC 08B-2C/L

Only 2 left
Rs. 70.00
+ 18% GST

BEST OFFERS FOR YOU!

Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.

Technical Details

Designation
 PHC 08B-2C/L
Pitch
 12.7 mm
Roller diameter max
 8.51 mm
Width between inner plates min
 7.75 mm
Pin diameter max 4.45 mm
Plate height max 11.8 mm
Plate thickness max 1.6 mm
Chain number
 08B-2
Standard
 BS
Link Type Connecting Link
Weight per meter 1.34 Kg
Product net weight 0.017 kg



PRODUCT DESCRIPTION

Duplex connecting chain link, European standards (EN)

Chains are critical components in power transmission systems. Robust, quality chain drives extend mean time between failures, which reduces maintenance costs. Duplex connecting chain links are used to connect the two ends of a chain together. Both the spring clip and cotter pin type connecting links can be disassembled and replaced easily. The riveted type provides a very strong link, and has a similar fatigue strength as the other links in the chain.

  • Provide a strong link
  • Easy to disassemble and replace
  • Better wear resistance than ANSI connecting links
  • Available as simplex, duplex and triplex
