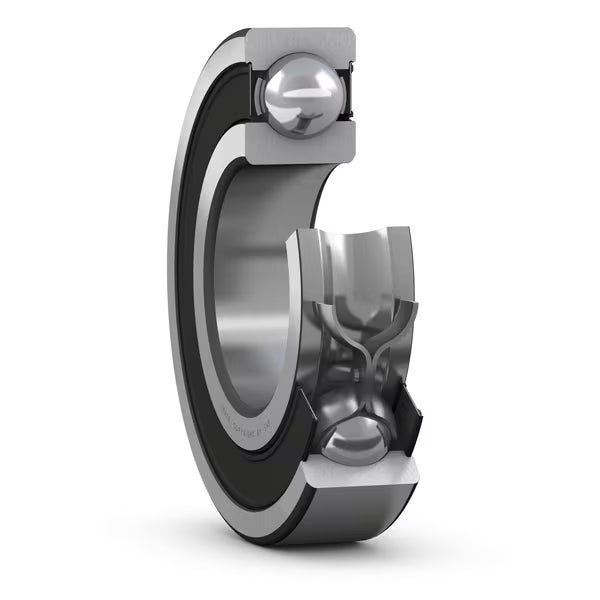

SKF Deep Groove Ball Bearings, 6206-2RS1

In stock
SKU: 6206-2RS1
Rs. 782.00
+ 18% GST

BEST OFFERS FOR YOU!

Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.

Technical Specifications

Bore diameter 30 mm
Deviation limits of mid-range bore diameter -0.008  –  0 mm
Outside diameter 62 mm
Deviation limits of mid-range outside diameter -0.011  –  0 mm
Width 16 mm
Deviation limits of ring width -0.06  –  0 mm
Shoulder diameter ≈40.36 mm
Recess diameter ≈54.06 mm
Chamfer dimension min.1 mm
ISO tolerance class for dimensions P6 and tighter width tolerance
Diameter of shaft abutment min.35.6 mm
Diameter of shaft abutment max.40.3 mm
Diameter of housing abutment max.56.4 mm
Radius of shaft or housing fillet max.1 mm
SKF performance class SKF Explorer
Basic dynamic load rating 20.3 kN
Basic static load rating 11.2 kN
Fatigue load limit 0.475 kN
Limiting speed 8 000 r/min
Minimum load factor 0.03
Calculation factor 14
Range of section height at inner ring of assembled bearing 8 µm
Range of section height at outer ring of assembled bearing 13 µm
ISO tolerance class for geometrical tolerances P6

Product Description

Single row deep groove ball bearings with seals or shields are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.

  • Integral sealing prolongs bearing service life
  • Simple, versatile and robust design
  • Low friction and high-speed capability
  • Accommodate radial and axial loads in both directions
  • Require little maintenance
