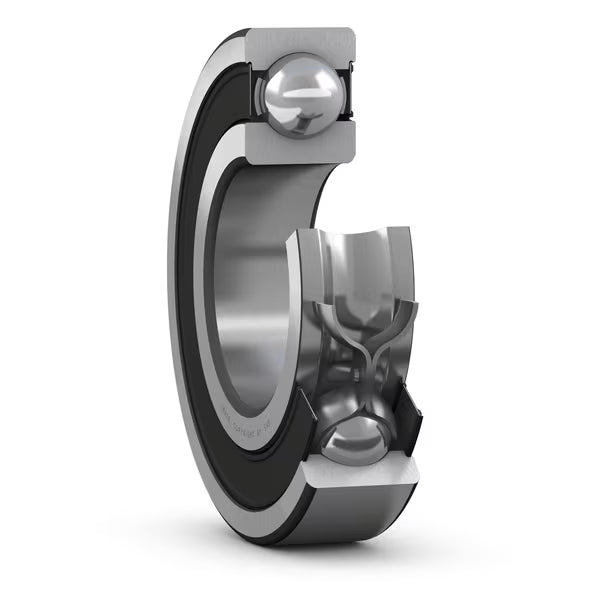

SKF Deep Groove Ball Bearings, 608-2RSH
Regular price
Rs. 339.00
Regular price
Sale
Rs. 470.00
Sale price
Rs. 339.00
+ 18% GST
BEST OFFERS FOR YOU!
Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.
Technical Specifications
| Bore diameter | 8 mm |
| Deviation limits of mid-range bore diameter | -0.007 – 0 mm |
| Outside diameter | 22 mm |
| Deviation limits of mid-range outside diameter | -0.008 – 0 mm |
| Width | 7 mm |
| Deviation limits of ring width | -0.06 – 0 mm |
| Recess diameter | ≈10.55 mm |
| Recess diameter | ≈19.2 mm |
| Chamfer dimension | min.0.3 mm |
| ISO tolerance class for dimensions | P6 and tighter width tolerance |
| Diameter of shaft abutment | min.10 mm |
| Diameter of shaft abutment | max.10.5 mm |
| Diameter of housing abutment | max.20 mm |
| Radius of shaft or housing fillet | max.0.3 mm |
| SKF performance class | SKF Explorer |
| Basic dynamic load rating | 3.45 kN |
| Basic static load rating | 1.37 kN |
| Fatigue load limit | 0.057 kN |
| Limiting speed | 22 000 r/min |
| Minimum load factor | 0.03 |
| Calculation factor | 12 |
Product Description
Single row deep groove ball bearings with seals on one or both sides are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.
- Integral sealing prolongs bearing service life
- Simple, versatile and robust design
- Low friction and high-speed capability
- Accommodate radial and axial loads in both directions
- Require little maintenance
