Home » Lubrication Tools » SKF 1077600 H Grease Gun
SKF

SKF 1077600 H Grease Gun

Only 2 left
Rs. 4,810.00
+ 18% GST

BEST OFFERS FOR YOU!

Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.

Technical Details

Dimensions
Reservoir volume
 500 ml
Filling connection DIN 1283
Length 380 mm
Properties
Recommended applications
 For manual filling of greasing points in industrial, construction and agricultural applications
Grease supply Loose or Cartridge
Use of standard grease cartridges Yes, type DIN 1284
NLGI class of lubricant (max) 2
Suitable for grease nipples
 Standard nipples as per DIN 71412
Maximum pressure
 400 bar
Operation
 Two hands
Pipe/Hose thread connection
 M10x1
Extension pipe
 Optional
Hose
 Yes 300 mm
Can be filled with Grease filler pump
 Yes, with SKF LAGF 18 or LAGF 50
Performance
Maximum Pressure
 40 MPa
Volume per stroke
 1.5 ml
Logistics
Product net weight
 1.29 kg
eClass code
 23-06-91-06
UNSPSC code 15121902



PRODUCT DESCRIPTIONS

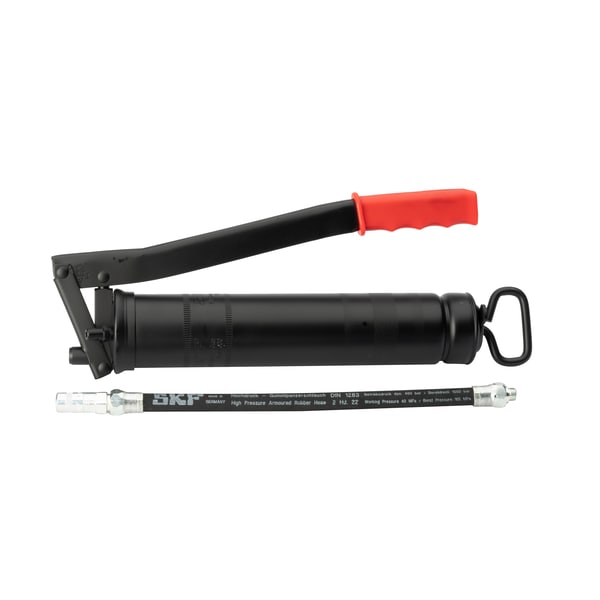

Manual-operated grease gun

The SKF Grease Gun 1077600 H is ideal for usage in agricultural, industrial and construction industries and for private use. The grease gun is delivered with a 300 mm (12 in.) long high pressure extension hose and a hydraulic gripping nozzle.

  • Suitable for usage with cartridges and loose grease
  • Knurled body for firm and safe grip
  • High-quality steel is dent-resistant for easy cartridge loading
  • Special piston design for smooth emptying of cartridges
  • Supplied with high pressure hose and hydraulic gripping nozzle
