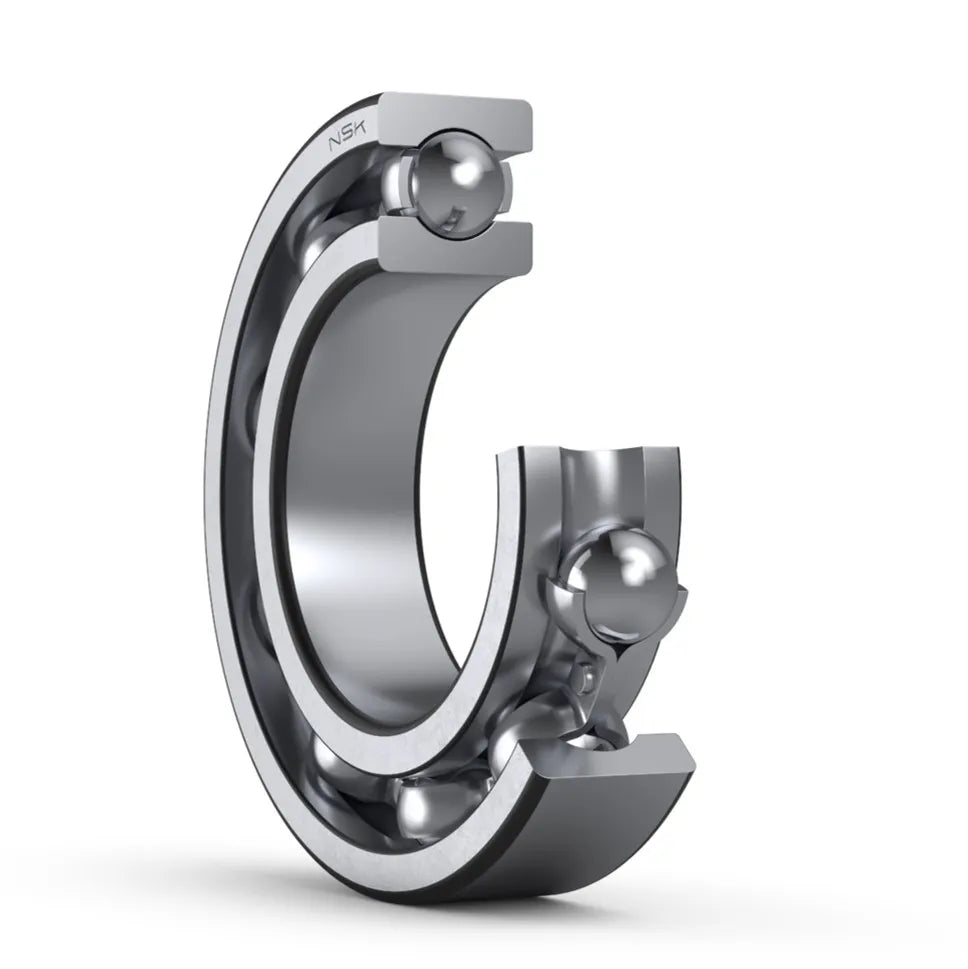

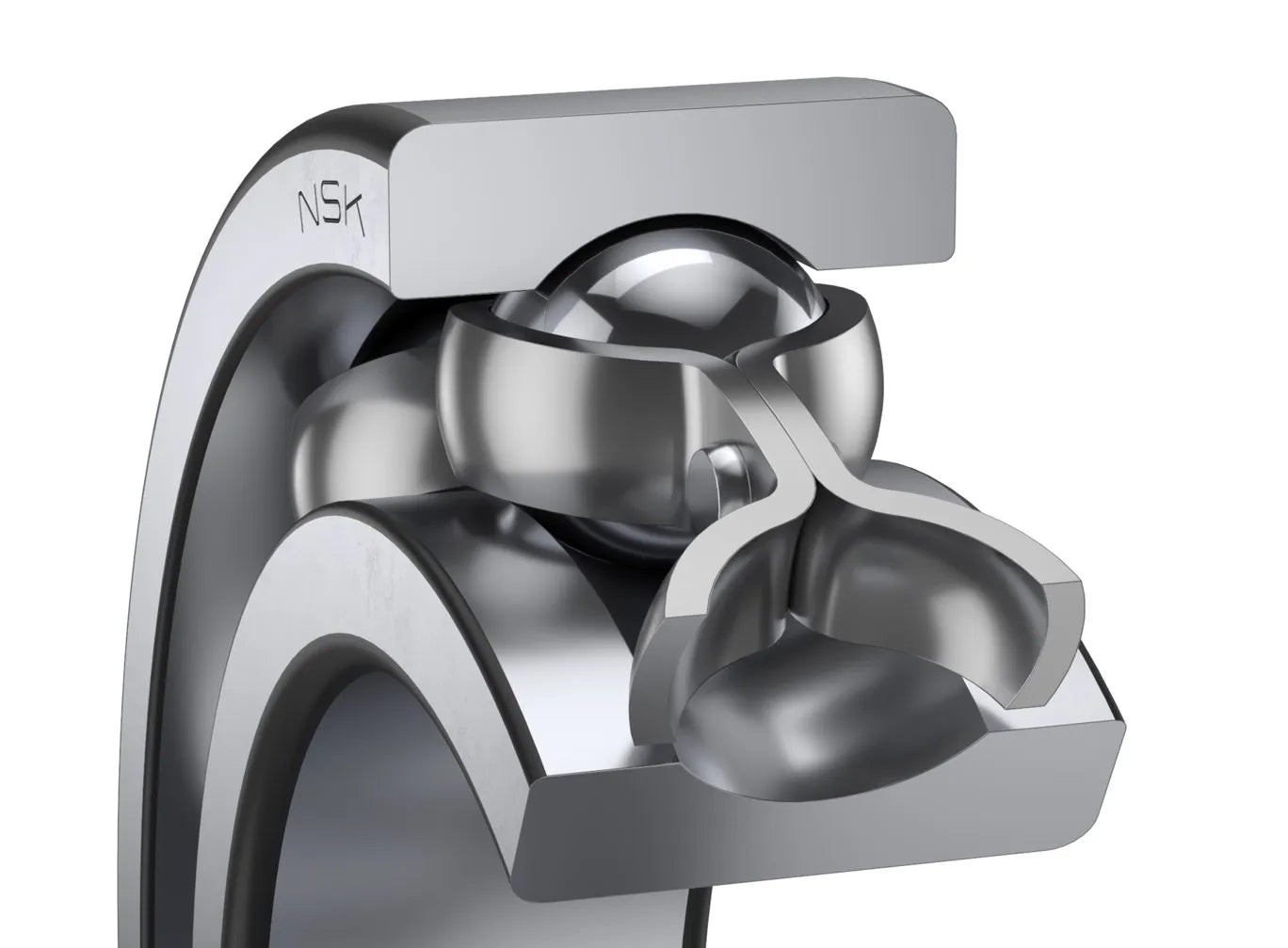

NSK - 6005CM - Deep Groove Ball Bearings
Regular price
Rs. 169.00
+ 18% GST
BEST OFFERS FOR YOU!
Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.
Technical Specifications
| Boundary Dimensions | |
| Bore diameter | 25 mm |
| Outside diameter | 47 mm |
| Width | 12 mm |
| Chamfer dimension | 0.6 mm |
| Basic Load Ratings | |
| Basic dynamic load rating | 11100 N |
| Basic static load rating | 5850 N |
| Grease lubrication | 18000 min-1 |
| Oil-bath lubrication | 22000 min-1 |
| Abutment and Fillet Dimensions | |
| Diameter of shaft abutment | 29 mm |
| Diameter of shaft abutment | 30 mm |
| Diameter of housing abutment | 43 mm |
| Radius of shaft or housing fillet | 0.6 mm |
| Calculation factors | |
| Factor | 14.5 |
| Additional information | |
| Number of Balls | 10 |
| Ball Diameter | 6.35 mm |
| Mass | |
| Weight | 0.079 kg |
