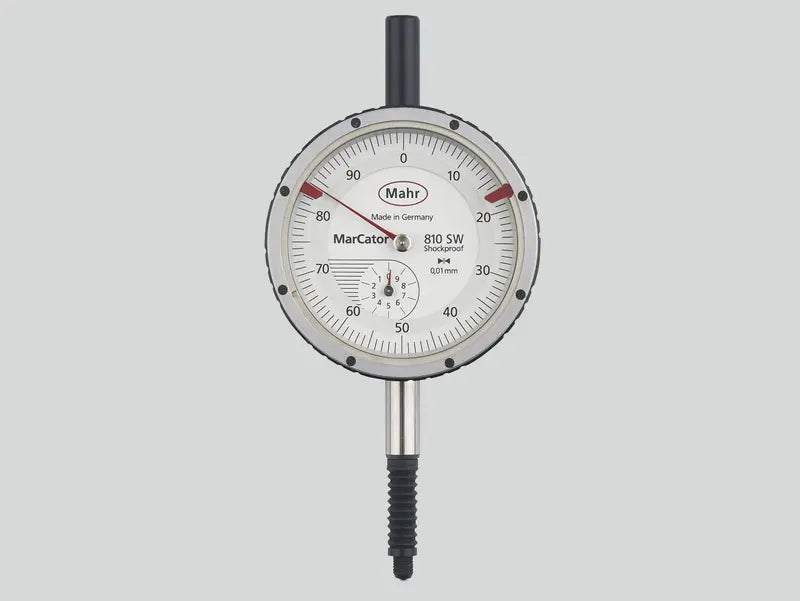

Mahr Mechanical Dial Indicators, MarCator 810 SW, Art. no. 4315000
Regular price
Rs. 0.00
+ 18% GST
BEST OFFERS FOR YOU!
Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.
Product Description
Art. no. 4315000
Dial indicator with IP protection MarCator 810 SW
IP protection category: IP 54 DIN 878
Measuring span in mm: 10mm
Graduation value mm: 0.01
Package contains: case
Product information
- High contrast dial face
- Adjustable tolerance markers
- Chrome plated housing
- Precision gears and pinions
- Protection cap on end of measuring pin, dial plate ring, and transparent panel with O-rings sealed
- Rubber bellows on measuring pin to protect against the penetration of liquids and contaminations
Technical Specifications
| Product type | 810 SW |
| Measuring span in mm | 10 mm |
| Range per rev. in mm | 1 mm |
| Graduation value mm | 0.01 |
| Error limit measuring range µm | 15 µm |
| Error limit 1 revolution µm | 10 µm |
| Error limit 1/2 revolution µm | 9 µm |
| Error limit 1/10 revolution µm | 5 µm |
| Measuring value hysteresis fu (µm) | 3 µm |
| Repeatability fw (µm) | 3 µm |
| Figure on dial face | 0 - 100 |
| Dial color | White |
| Dimensions | a 61 mm | b 24.2 mm | c 7.9 mm | d 52 mm | e 127.6 mm | f 22 mm | g 22.1 mm |
Variety of applications for our products
- Special design with IP protection against liquids and dust
- Ideal for use in particularly challenging environments where the dial gauge is highly contaminated or exposed to splash water
