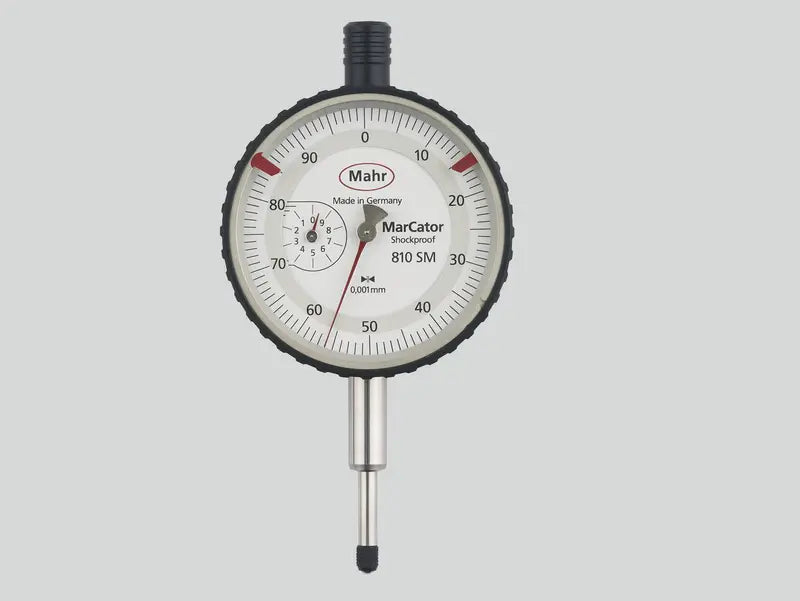

Mahr Mechanical Dial Indicators, MarCator 810 SM, Art. no. 4311070
Regular price
Rs. 0.00
+ 18% GST
BEST OFFERS FOR YOU!
Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.
Product Description
Art. no. 4311070
Mechancial dial indicator MarCator 810 SM
Factory standard Measuring span in mm: 1mm
Graduation value mm: 0.001
Package contains: case
Product information
- High contrast dial face
- Adjustable tolerance markers
- Chrome plated housing
- Lifter protection cap on the measuring spindle
- Precision measuring tool with combined gear/lever transmission
- High accuracy and minimal hysteresis
Technical Specifications
| Product type | 810 SM |
| Measuring span in mm | 1 mm |
| Range per rev. in mm | 0.1 mm |
| Graduation value mm | 0.001 |
| Error limit measuring range µm | 4 µm |
| Error limit 1 revolution µm | 3 µm |
| Error limit 1/2 revolution µm | 2 µm |
| Error limit 1/10 revolution µm | 1 µm |
| Measuring value hysteresis fu (µm) | 1.5 µm |
| Repeatability fw (µm) | 1.5 µm |
| Figure on dial face | 0-100 |
| Scale diameter | 50 mm |
| Dimensions | a 58 mm | b 23 mm | c 8.5 mm | d 52 mm | e 111.5 mm | f 22 mm | g 15 mm |
