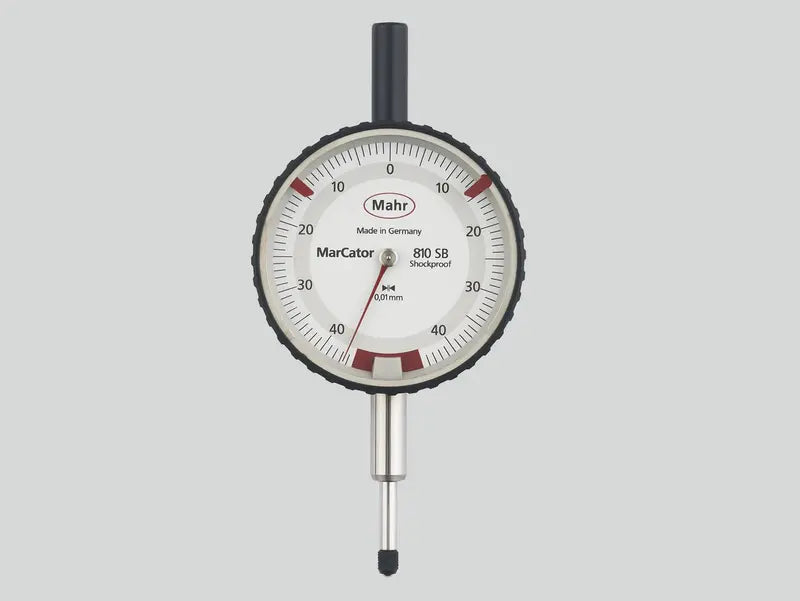

Mahr Mechanical Dial Indicators, MarCator 810 SB, Art. no. 4317000
Regular price
Rs. 0.00
+ 18% GST
BEST OFFERS FOR YOU!
Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.
Product Description
Art. no. 4317000
Safety dial indicator MarCator 810 SB DIN 878
Measuring span in mm: 0.8mm
Graduation value mm: 0.01
Package contains: case
Product information
- High contrast dial face
- Adjustable tolerance markers
- Chrome plated housing
- Protection cap on end of measuring pin
- Limited measuring range to ensure readings without mistakes
- Large free stroke, e.g. to make it easier to insert testpieces into measuring devices
- Precision gears and pinions
Technical Specifications
| Product type | 810 SB |
| Measuring span in mm | 0.8 mm |
| Range per rev. in mm | 0.8 mm |
| Graduation value mm | 0.01 |
| Error limit measuring range µm | 7 µm |
| Error limit 1/2 revolution µm | 6 µm |
| Error limit 1/10 revolution µm | 5 µm |
| Measuring value hysteresis fu (µm) | 3 µm |
| Repeatability fw (µm) | 3 µm |
| Figure on dial face | 40 - 0 - 40 |
| Dial color | White |
| Dimensions | a 58 mm | b 23 mm | c 7.5 mm | d 52 mm | e 120 mm | f 22 mm | g 15 mm |
Variety of applications for our products
For safety reasons, the indication range of these dial indicators is limited to just under one pointer rotation.
This prevents the risk of measuring errors arising from possible additional pointer rotations.
This prevents the risk of measuring errors arising from possible additional pointer rotations.
