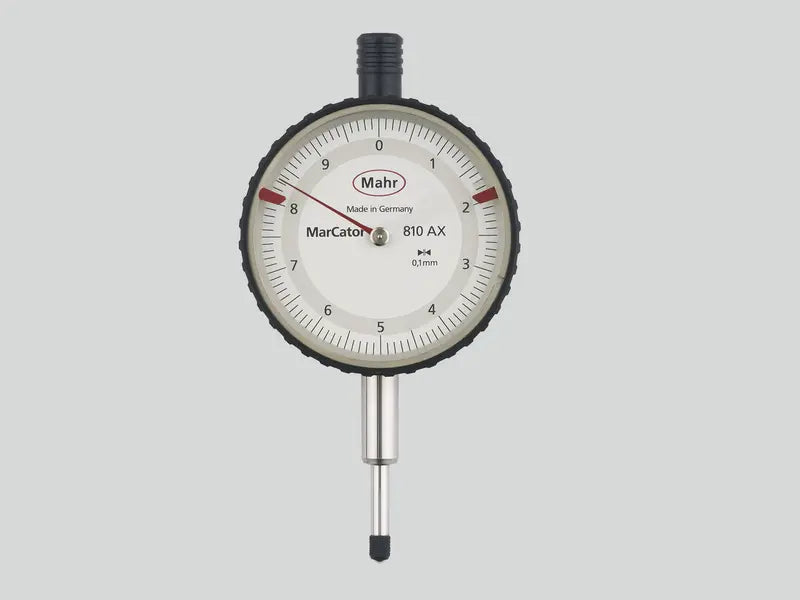

Mahr Mechanical Dial Indicators, MarCator 810 AX, Art. no. 4331000
Regular price
Rs. 0.00
+ 18% GST
BEST OFFERS FOR YOU!
Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.
Product Description
Art. no. 4331000
Mechancial dial indicator MarCator 810 AX
Factory standard
Measuring span in mm: 10mm
Graduation value mm: 0.1
Package contains: case
Product information
- High contrast dial face
- Adjustable tolerance markers
- Chrome plated housing
- Lifter protection cap on the measuring spindle
- Precision gears and pinions
Technical Specifications
| Product type | 810 AX |
| Measuring span in mm | 10 mm |
| Range per rev. in mm | 10 mm |
| Graduation value mm | 0.1 |
| Error limit measuring range µm | 50 µm |
| Error limit 1 revolution µm | 50 µm |
| Error limit 1/2 revolution µm | 40 µm |
| Error limit 1/10 revolution µm | 30 µm |
| Measuring value hysteresis fu (µm) | 15 µm |
| Repeatability fw (µm) | 15 µm |
| Figure on dial face | 0 - 10 |
| Dial color | White |
| Scale diameter | 50 mm |
