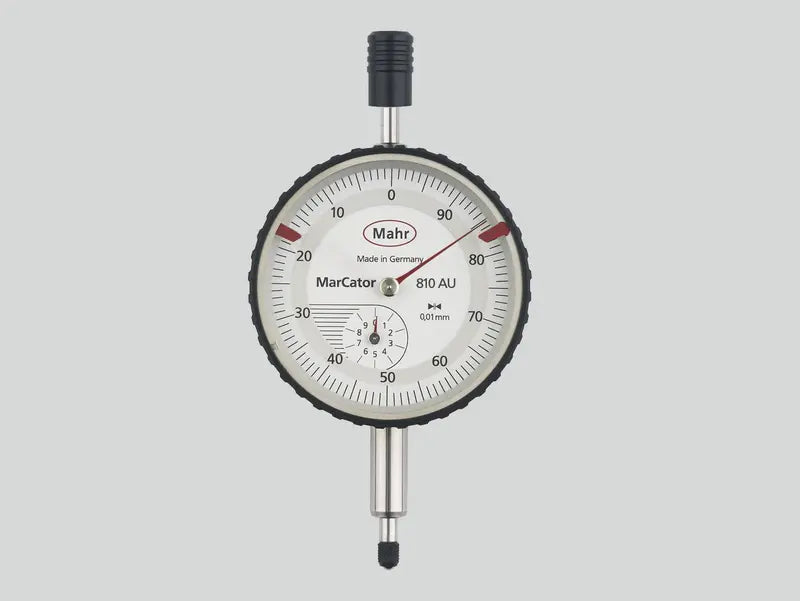

Mahr Mechanical Dial Indicators, MarCator 810 AU, Art. no. 4329050
Regular price
Rs. 0.00
+ 18% GST
BEST OFFERS FOR YOU!
Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.
Product Description
Art. no. 4329050
Mechancial dial indicator MarCator 810 AU
Factory standard
Measuring span in mm: 10mm
Graduation value mm: 0.01
Package contains: case
Product information
- High contrast dial face
- Adjustable tolerance markers
- Chrome plated housing
- Lifter protection cap on the measuring spindle
- Precision gears and pinions
Technical Specifications
| Product type | 810 AU |
| Measuring span in mm | 10 mm |
| Range per rev. in mm | 1 mm |
| Graduation value mm | 0.01 |
| Error limit measuring range µm | 15 µm |
| Error limit 1 revolution µm | 10 µm |
| Error limit 1/2 revolution µm | 9 µm |
| Error limit 1/10 revolution µm | 5 µm |
| Repeatability fw (µm) | 5 µm |
| Figure on dial face | 100 - 0 |
| Dial color | White |
| Scale diameter | 50 mm |
| Dimensions | a 58 mm | b 23 mm | c 7.5 mm | d 52 mm | e 112 mm | f 22 mm | g 4.5 mm |
Variety of applications for our products
810 AU: The measuring pin is retracted by spring, contacting and the measuring force are triggered manually by pressing on the upper sleeve
