Mahr Mechanical Dial Indicators, MarCator 810 AG, Art. no. 4322000
Regular price
Rs. 0.00
+ 18% GST
BEST OFFERS FOR YOU!
Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.
Product Description
Art. no. 4322000

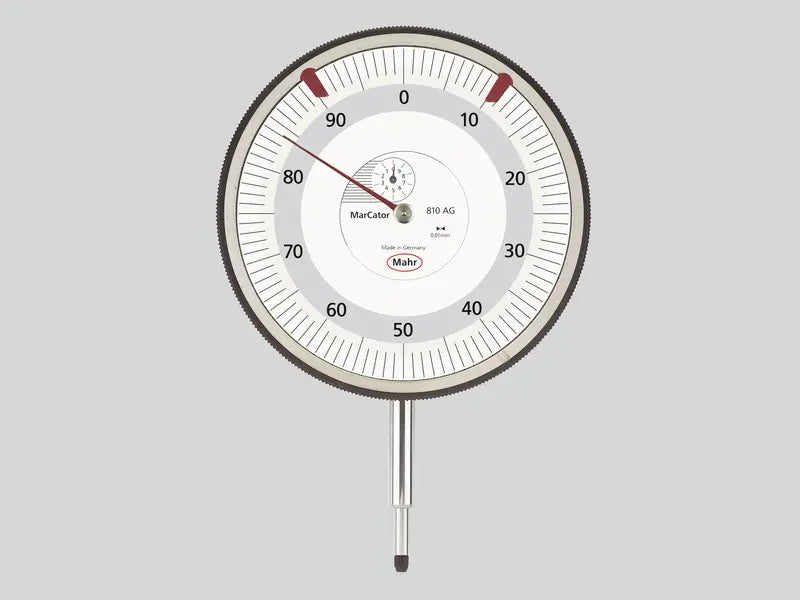

Large dial indicator MarCator 810 AG
Factory standard
Measuring span in mm: 10mm
Graduation value mm: 0.01
Package contains: Cardboard box
Product information
- Large, high contrast dial face
- Adjustable tolerance markers
- Chrome plated housing
- Lifter protection cap on the measuring spindle
- Precision gears and pinions
Technical Specifications
| Product type | 810 AG |
| Measuring span in mm | 10 mm |
| Range per rev. in mm | 1 mm |
| Graduation value mm | 0.01 |
| Error limit measuring range µm | 17 µm |
| Error limit 1 revolution µm | 15 µm |
| Error limit 1/2 revolution µm | 10 µm |
| Error limit 1/10 revolution µm | 5 µm |
| Measuring value hysteresis fu (µm) | 5 µm |
| Repeatability fw (µm) | 3 µm |
| Figure on dial face | 0 - 100 |
| Dial color | White |
| Scale diameter | 112 mm |
Variety of applications for our products
Ideal for long reading distance and in poorly lit conditions
