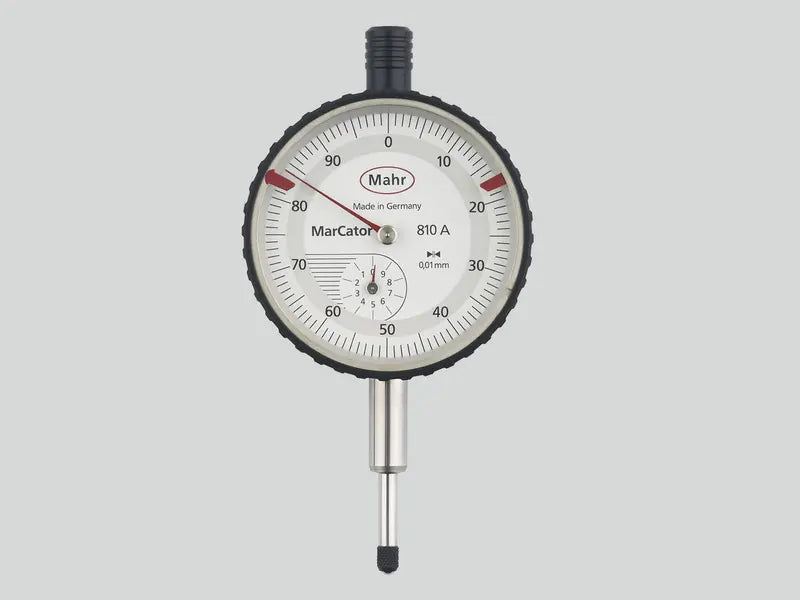

Mahr Mechanical Dial Indicators, MarCator 810 A, Art. no. 4311050
Regular price
Rs. 0.00
+ 18% GST
BEST OFFERS FOR YOU!
Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.
Product Description
Art. no. 4311050
Mechancial dial indicator MarCator 810 A DIN 878
Measuring span in mm: 10mm
Graduation value mm: 0.01
Package contains: case
Product information
- High contrast dial face
- Adjustable tolerance markers
- Chrome plated housing
- Lifter protection cap on the measuring spindle
- Precision gears and pinions
Technical Specifications
| Product type | 810 A |
| Measuring span in mm | 10 mm |
| Range per rev. in mm | 1 mm |
| Graduation value mm | 0.01 |
| Error limit measuring range µm | 15 µm |
| Error limit 1 revolution µm | 10 µm |
| Error limit 1/2 revolution µm | 9 µm |
| Error limit 1/10 revolution µm | 5 µm |
| Measuring value hysteresis fu (µm) | 3 µm |
| Repeatability fw (µm) | 3 µm |
| Figure on dial face | 0 - 100 |
| Dial color | White |
| Scale diameter | 50 mm |
| Dimensions | a 58 mm | b 23 mm | c 7.5 mm | d 52 mm | e 112 mm | f 22 mm | g 15 mm |
