Mahr Measuring Tripods, MarStand 815 MG, Art. no. 4420360
Regular price
Rs. 0.00
+ 18% GST
BEST OFFERS FOR YOU!
Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.
Product Description
Art. no. 4420360

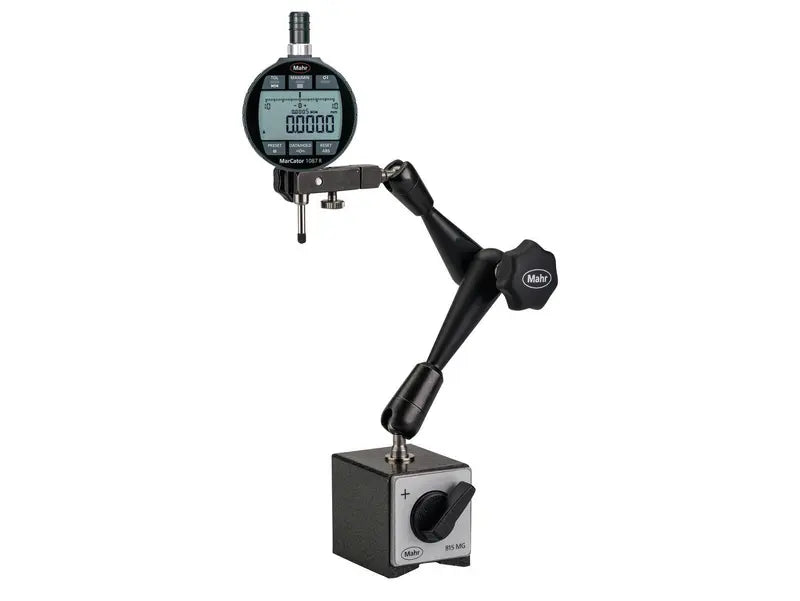

Measuring tripod with magnetic base MarStand 815 MG
Total height 310 mm
Projection (max.) 200 mm
Mounting hole: 8H7
Product information
- 3D jointed arm, can reach any position within the operating range
- Easy positioning of all three joints with a securely fixed handle
- Maintenance-free mechanical clamping system
- Black anodized arm components made from high-quality light alloy
- Dial indicator holder with 8 mm mounting bore and dovetail for dial test indicator measuring devices
- Fitted with zero-play micro-precision adjuster
- Very powerful switching magnet
Technical Specifications
| Fine adjustment range mm | 5 mm |
| V-block for shaft diameter | 6 - 120 |
| Adhesive force prism | 800 N |
| Mounting hole | 8H7 |
| Total height | 310 mm |
| Projection (max.) | 200 mm |
| Base surface | 60 x 50 x 55 mm |
| Dimensions | a 310 mm | b 200 mm | d 8 mm | j 120 mm | k 80 mm | l 49 mm | |
Variety of applications for our products
- For general measuring tasks in production and workshops
- High flexibility and stability, ideal for display devices with a resolution of up to 0.01 mm (.0005") such as dial gauges or test indicators
