Mahr Measuring Tripods, MarStand 815 MF, Art. no. 4420385
Regular price
Rs. 0.00
+ 18% GST
BEST OFFERS FOR YOU!
Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.
Product Description
Art. no. 4420385

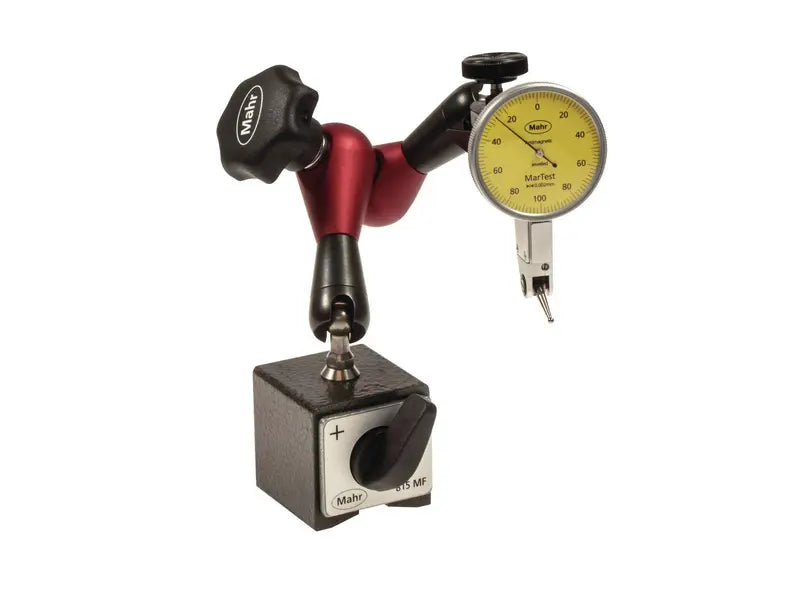

Measuring tripod with magnetic base MarStand 815 MF
Total height 228 mm
Projection (max.) 130 mm
Mounting hole: 8H7
Product information
- 3D jointed arm, can reach any position within the operating range
- Easy positioning of all three joints with a securely fixed handle
- Very sturdy component, for excellent stability and accuracy
- Maintenance-free mechanical clamping system
- Black anodized arm components made from high-quality light alloy
- Dial indicator holder with 8 mm mounting bore and dovetail for dial test indicator measuring devices
- Fitted with zero-play micro-precision adjuster
- Very easy to adjust, excellent repeatability
- Ideal for measuring instruments with ?m resolution
- Very powerful switching magnet
Technical Specifications
| Fine adjustment range mm | 2 mm |
| V-block for shaft diameter | 6 - 120 |
| Adhesive force prism | 300 N |
| Mounting hole | 8H7 |
| Total height | 228 mm |
| Projection (max.) | 130 mm |
| Base surface | 40 x 40 x 40 mm |
| Dimensions | a 228 mm | b 130 mm | d 8 mm | j 71 mm | k 59 mm | l 49 mm | |
Variety of applications for our products
- Very sturdy components for excellent stability and very precise fine adjustment
- Special made for high precise measuring instruments like indicators, comparators, inductive probes with µm resolution
