Mahr Measuring Tripods, MarStand 815 MB, Art. no. 4417000
Regular price
Rs. 0.00
+ 18% GST
BEST OFFERS FOR YOU!
Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.
Product Description
Art. no. 4417000

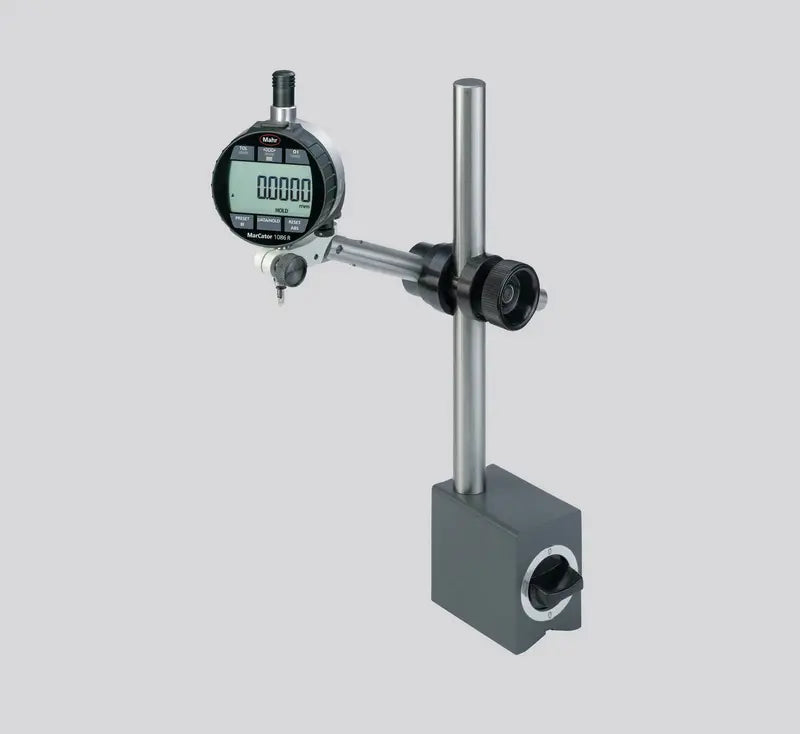

Measuring tripod with magnetic base MarStand 815 MB
Total height 285 mm
Projection (max.) 190 mm
Mounting hole: 8H7
Product information
- Support arm fitted with joint
- Powerful ON/OFF magnet
- Magnetic force transferred via flat and prismatic base and front of the machine base
- Stainless steel column and support arm
- Fine adjustment at support arm
- Display unit can be swiveled by ± 90°
Technical Specifications
| Fine adjustment range mm | 2 mm |
| V-block for shaft diameter | 20 - 100 |
| Adhesive force prism | 450 N |
| Mounting hole | 8H7 |
| Total height | 285 mm |
| Projection (max.) | 190 mm |
| Product weight | 2.2 kg |
