Mahr Measuring Tripods, MarStand 815 MA, Art. no. 4416000
Regular price
Rs. 0.00
+ 18% GST
BEST OFFERS FOR YOU!
Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.
Product Description
Art. no. 4416000

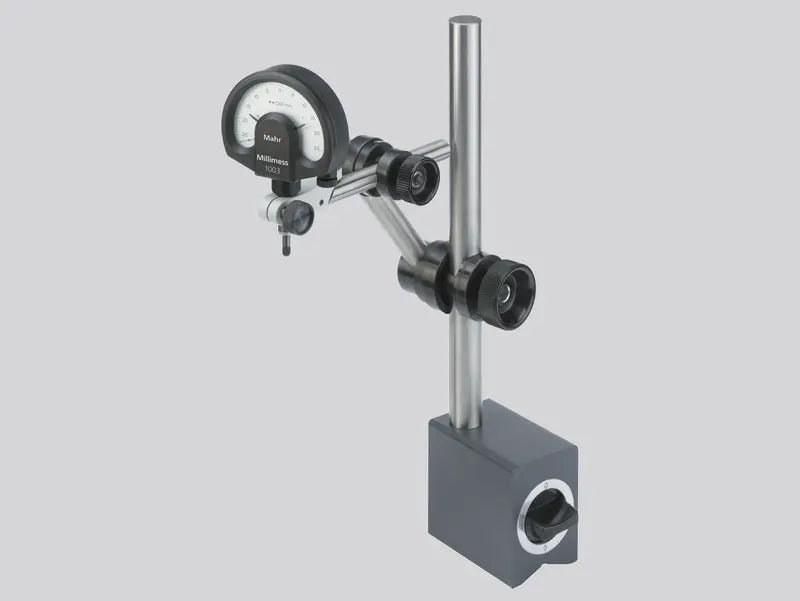

Measuring tripod with magnetic base MarStand 815 MA
Total height 285 mm
Projection (max.) 230 mm
Mounting hole: 8H7
Product information
- Support arm with two joints
- Powerful ON/OFF magnet
- Magnetic force transferred via flat and prismatic base and front of the machine base
- Stainless steel column and support arm
- Fine adjustment at support arm
Technical Specifications
| Fine adjustment range mm | 2 mm |
| V-block for shaft diameter | 20 - 100 |
| Adhesive force prism | 450 N |
| Mounting hole | 8H7 |
| Total height | 285 mm |
| Projection (max.) | 230 mm |
| Product weight | 2.5 kg |
