Mahr Measuring Tripods, MarStand 815 GN, Art. no. 4413051
Regular price
Rs. 0.00
+ 18% GST
BEST OFFERS FOR YOU!
Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.
Product Description
Art. no. 4413051

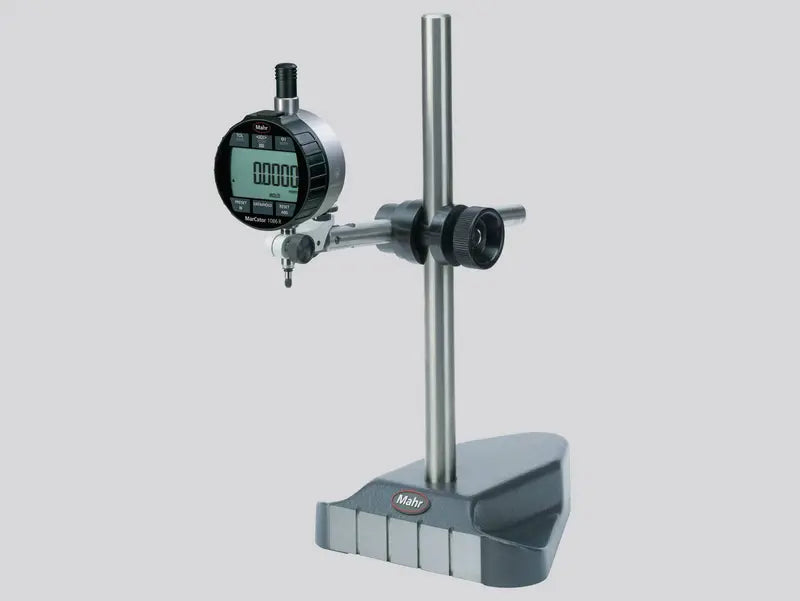

Measuring tripod with triangular pedestal MarStand 815 GN
Total height 500 mm
Projection (max.) 200 mm
Mounting hole: .375"
Product information
- Sturdy machine base for stability and strength
- Top of the base has a convenient hand grip
- Structurally stable three-point support
- Stainless steel column and support arm
- Fine adjustment at support arm
- Display unit can be swiveled by ± 90°
- Easy to move, without vibration
- Front of the base is ground to allow movement along edges and rulers
Technical Specifications
| Fine adjustment range mm | 2 mm |
| Mounting hole | .375" |
| Total height | 500 mm |
| Column diameter d | 18 mm |
| Projection (max.) | 200 mm |
| Base surface | 190 x 180 mm |
| Product weight | 9 kg |
| Dimensions | a 500 mm | b 200 mm | c 25 mm | d 18 mm | |
Variety of applications for our products
- For use on measuring and control plates
