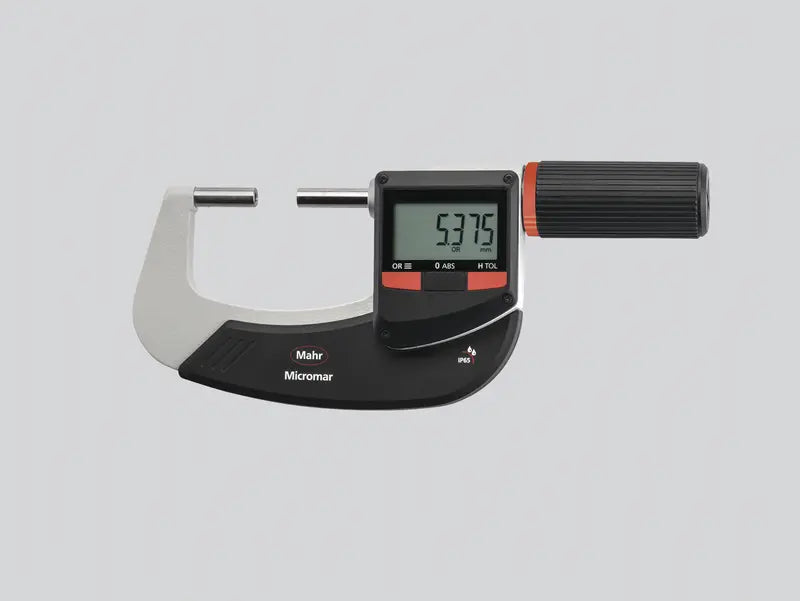

Mahr Digital Outside Micromar 40 EWRi-V, Art. no. 4157146
Regular price
Rs. 0.00
+ 18% GST
BEST OFFERS FOR YOU!
Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.
Product Description
Art. no. 4157146
Digital micrometer Micromar 40 EWRi-V For measuring thread flanks and gear diameters using quick-change measuring anvils. IP protection category: IP 65 Data interface: Integrated Wireless DIN 863-3 Measuring range 25 - 50 mm mm Resolution mm/inch 0.001 / .00005" Package contains: battery, test certificate, instruction manual, case
- With mounting bores for measuring anvils with a shaft Ø 3.5 mm
- High contrast digit display
- Stainless spindle is hardened throughout and ground
- QUICK DRIVE
- Sliding spindle
- Ratchet is integrated in the thimble
- Lacquered steel frame, heat insulated
Technical Specifications
|
Micromar 40 EWRi-V | Art. no. 4157146 |
|
|---|---|
|
Measuring range |
25 - 50 mm |
|
Measuring range |
1 - 2" |
|
Resolution mm/inch |
0.001 / .00005" |
|
Error limit µm |
4 µm |
|
Measuring force (N) |
5 - 10 |
|
Battery type |
CR 2032 (3V Lithium) |
|
Spindle diameter |
6.5 mm |
|
Spindle thread pitch_mm |
5 mm |
|
Dimensions |
a 44 mm | b 13.5 mm | c 82 mm | |
Variety of applications for our products
For measuring thread flanks and gear diameters using quick-change measuring anvils.
