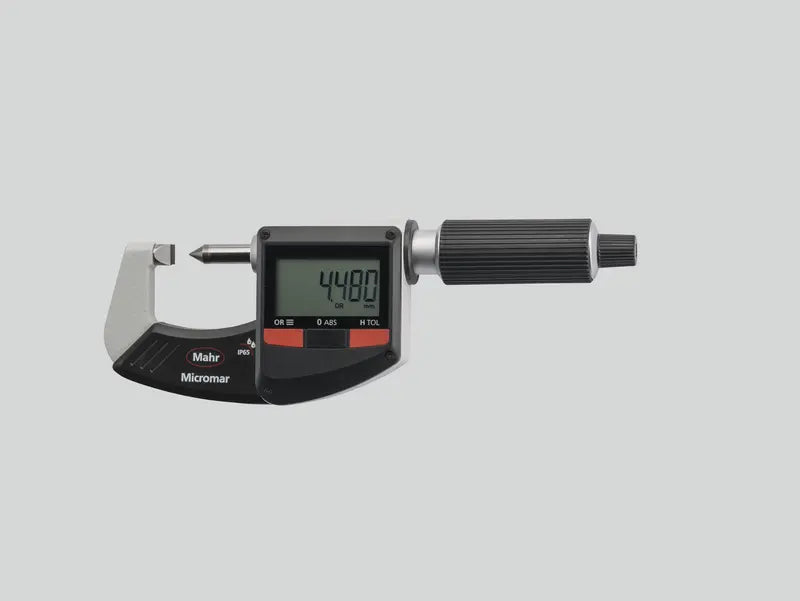

Mahr Digital Outside Micromar 40 EWRi-K, Art. no. 4157140
Regular price
Rs. 0.00
+ 18% GST
BEST OFFERS FOR YOU!
Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.
Product Description
Art. no. 4157140
Digital micrometer Micromar 40 EWRi-K For measuring crimp heights IP protection category: IP 65 Data interface: Integrated Wireless Factory standard Measuring range 0 - 20 mm mm Resolution mm/inch 0.001 / .00005" Package contains: battery, test certificate, instruction manual, case
- Measuring surfaces: Anvil with narrow web, pointed spindle
- High contrast digit display
- Stainless spindle is hardened throughout and ground
- Spindle and anvil are carbide-tipped
- Rapid drive
- Ratchet is integrated in the thimble
- Lacquered steel frame, heat insulated
Technical Specifications
|
Micromar 40 EWRi-K | Art. no. 4157140 |
|
|---|---|
|
Measuring range |
0 - 20 mm |
|
Measuring range |
0 - 0.8" |
|
Resolution mm/inch |
0.001 / .00005" |
|
Error limit µm |
4 µm |
|
Measuring force (N) |
5 - 10 |
|
Battery type |
CR 2032 (3V Lithium) |
|
Material Contact surface |
carbide |
|
Spindle diameter |
6.5 mm |
|
Spindle thread pitch_mm |
0.5 mm |
|
Dimensions |
a 23 mm | b 9.5 mm | c 31.5 mm | |
Variety of applications for our products
For measuring crimp heights
