Mahr Digital Outside Micromar 40 EWR-L, Art. no. 4157023
Regular price
Rs. 0.00
+ 18% GST
BEST OFFERS FOR YOU!
Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.
Product Description
Art. no. 4157023

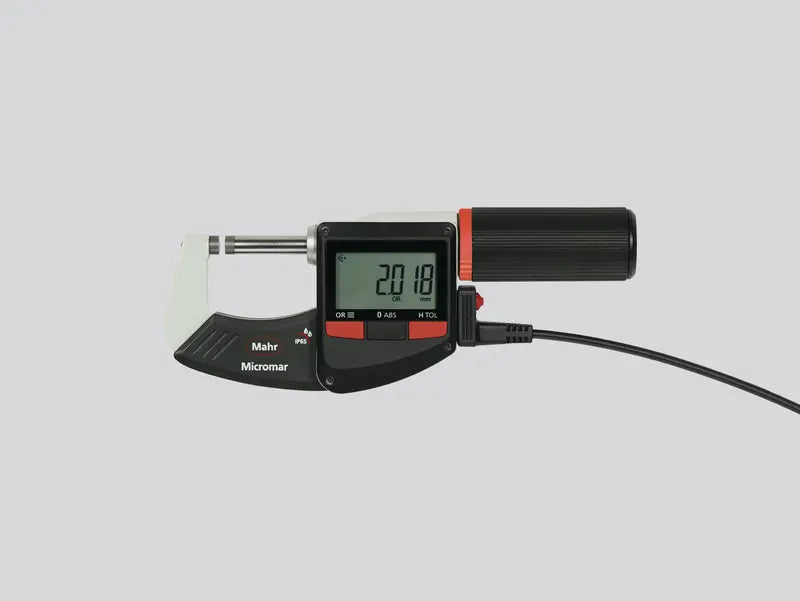

Digital Micrometer Micromar 40 EWR-L
- High contrast digit display
- Stainless spindle is hardened throughout and ground
- Spindle and anvil are carbide-tipped
- QUICK DRIVE
- Sliding spindle
- Ratchet is integrated in the thimble
- Lacquered steel frame, heat insulated
Technical Specifications
| Micromar 40 EWR-L | Art. no. 4157023 | |
|---|---|
| Measuring range | 75 - 100 mm |
| Measuring range | 3 - 4" |
| Resolution mm/inch | 0.001 / .00005" |
| Error limit µm | 3 µm |
| Parallel error in µm | 3 µm |
| Flatness in µm | 0.6 µm |
| Measuring force (N) | 5 - 10 |
| Battery type | CR 2032 (3V Lithium) |
| Material Contact surface | carbide |
| Spindle diameter | 6.5 mm |
| Spindle thread pitch_mm | 5 mm |
| Dimensions | a 57 mm | b 13 mm | c 107 mm | |
Variety of applications for our products
- Avoiding workpiece damage: The non-rotating spindle has a touching touch, which prevents scratch marks on sensitive and finely machined surfaces
- Ideal for measuring thin metal foils without twisting and bending them
- Thread flank measurement by using thread wires: Both wire holders always remain in the engaged position with the non-rotating spindle
