Mahr Digital Outside Micromar 40 EWR-L, Art. no. 4157022
Regular price
Rs. 0.00
+ 18% GST
BEST OFFERS FOR YOU!
Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.
Product Description
Art. no. 4157022

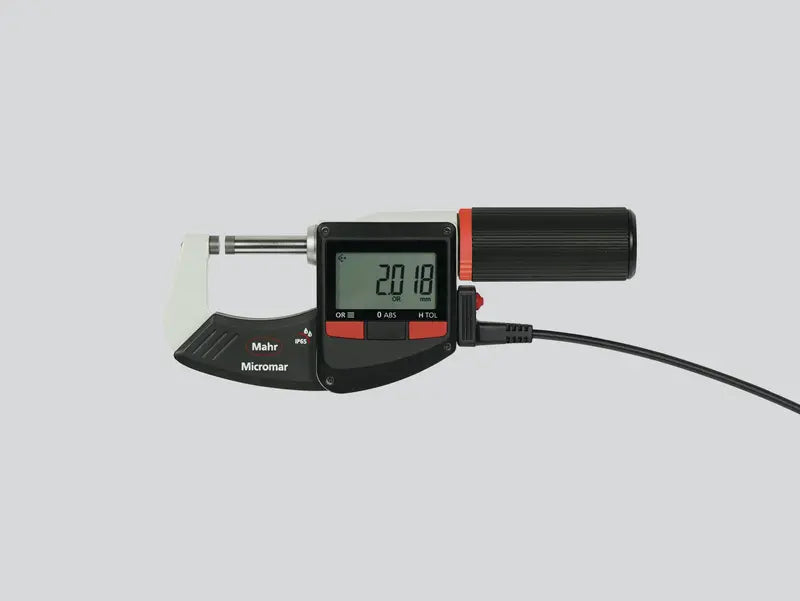

Digital Micrometer Micromar 40 EWR-L
- High contrast digit display
- Stainless spindle is hardened throughout and ground
- Spindle and anvil are carbide-tipped
- QUICK DRIVE
- Sliding spindle
- Ratchet is integrated in the thimble
- Lacquered steel frame, heat insulated
Technical Specifications
|
Micromar 40 EWR-L | Art. no. 4157022 |
|
|---|---|
|
Measuring range |
50 - 75 mm |
|
Measuring range |
2 - 3" |
|
Resolution mm/inch |
0.001 / .00005" |
|
Error limit µm |
3 µm |
|
Parallel error in µm |
3 µm |
|
Flatness in µm |
0.6 µm |
|
Measuring force (N) |
5 - 10 |
|
Battery type |
CR 2032 (3V Lithium) |
|
Material Contact surface |
carbide |
|
Spindle diameter |
6.5 mm |
|
Spindle thread pitch_mm |
5 mm |
|
Dimensions |
a 45 mm | b 13 mm | c 82 mm | |
Variety of applications for our products
- Avoiding workpiece damage: The non-rotating spindle has a touching touch, which prevents scratch marks on sensitive and finely machined surfaces
- Ideal for measuring thin metal foils without twisting and bending them
- Thread flank measurement by using thread wires: Both wire holders always remain in the engaged position with the non-rotating spindle
