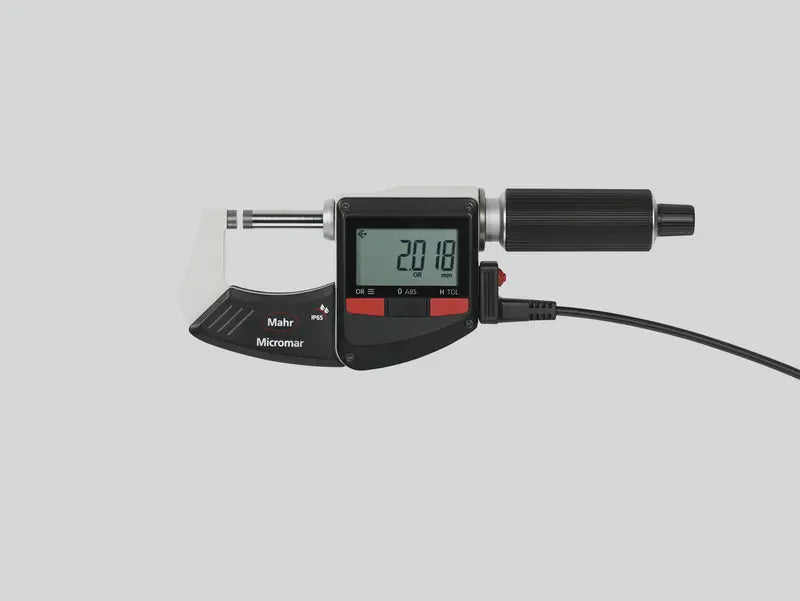

Mahr Digital Outside Micromar 40 EWR, Art. no. 4157002
+ 18% GST
BEST OFFERS FOR YOU!
Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.
Product Description
Art. no. 4157002
Digital Micrometer Micromar 40 EWR IP protection category: IP 65 Data interface: MarConnect (bidirectional), USB, Digimatic ISO 3611 Measuring range 50 - 75 mm mm Resolution mm/inch 0.001 / .00005" Package contains: setting standard (measuring range of 25-50 mm), battery, test certificate, instruction manual, case
- High contrast digit display
- Stainless spindle is hardened throughout and ground
- Spindle and anvil are carbide-tipped
- Rapid drive
- Ratchet is integrated in the thimble
- Lacquered steel frame, heat insulated
Technical Specifications
|
Micromar 40 EWR | Art. no. 4157002 |
|
|---|---|
|
Measuring range |
50 - 75 mm |
|
Measuring range |
2 - 3" |
|
Resolution mm/inch |
0.001 / .00005" |
|
Error limit µm |
3 µm |
|
Parallel error in µm |
3 µm |
|
Flatness in µm |
0.6 µm |
|
Measuring force (N) |
5 - 10 |
|
Battery type |
CR 2032 (3V Lithium) |
|
Material Contact surface |
carbide |
|
Spindle diameter |
6.5 mm |
|
Spindle thread pitch_mm |
0.5 mm |
|
Dimensions |
a 45 mm | b 13 mm | c 82 mm | |
