Mahr Digital Dial Caliper, MarCator 1087 ZR, Art. no. 4337670
Regular price
Rs. 0.00
+ 18% GST
BEST OFFERS FOR YOU!
Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.
Product Description
Art. no. 4337670

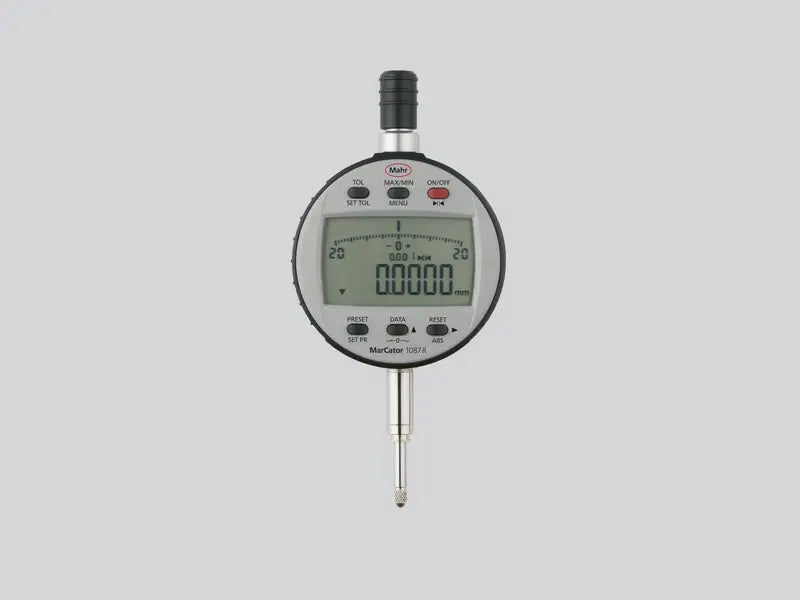

Digital indicator MarCator 1087 ZR
IP protection category: IP 42
Data interface: Opto RS-232C, Digimatic, USB Factory standard
Measuring span in mm: 12.5mm
Resolution: 0.0005, 0.001, 0.002, 0.005, 0.01
Resolution inches: .00002", .00005", .0001", .0002", .0005"
Package contains: battery, test certificate, instruction manual, Cardboard box
- High contrast LCD display, thus very clear and safe to read
- Operating and display unit (bezel) can be rotated through 280°
- Immediate measurements due to the Reference System
- Lifter protection cap on the measuring spindle
- Mounting shank and measuring spindle are both made of hardened stainless steel
Technical Specifications
| Product type | 1087 ZR |
| Measuring span in mm | 12.5 mm |
| Measuring span (inches) | .5" |
| Resolution | 0.0005 mm , 0.001 mm , 0.002 mm , 0.005 mm , 0.01 mm |
| Graduation value | 0,0005 , 0,001 , 0,002 , 0,005 , 0,01 |
| Graduation value inches | .000002'' , .00005" , .0001'' , .0002'' , .0005" |
| Error limit (mm) | 0.004 mm |
| Repeatability mm | 0.001 mm |
| Measuring force (N) | 0.65 - 0.9 |
| Height of digits | 8.5 mm |
| Range of analog display mm | ± 0,01 , ± 0,02 , ± 0,04 , ± 0,1 , ± 0,2 |
| Range of analog display inches | ± .0004" , ± .001'' , ± .002" , ± .004" , ± .01'' |
| Battery type | CR 2450N (3V Lithium) |
| Dimensions | a 126.3 mm | b 23 mm | c 13.5 mm | |
Variety of applications for our products
Comprehensive measuring functions for:
- Static measurements such as lengths, distances and length differences
- Dynamic measurements such as radial runout, straightness and flatness via MAX / MIN / MAX-MIN functions
