Mahr Digital Dial Caliper, MarCator 1087 Ri-HR, Art. no. 4337851
Regular price
Rs. 0.00
+ 18% GST
BEST OFFERS FOR YOU!
Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.
Product Description
Art. no. 4337851

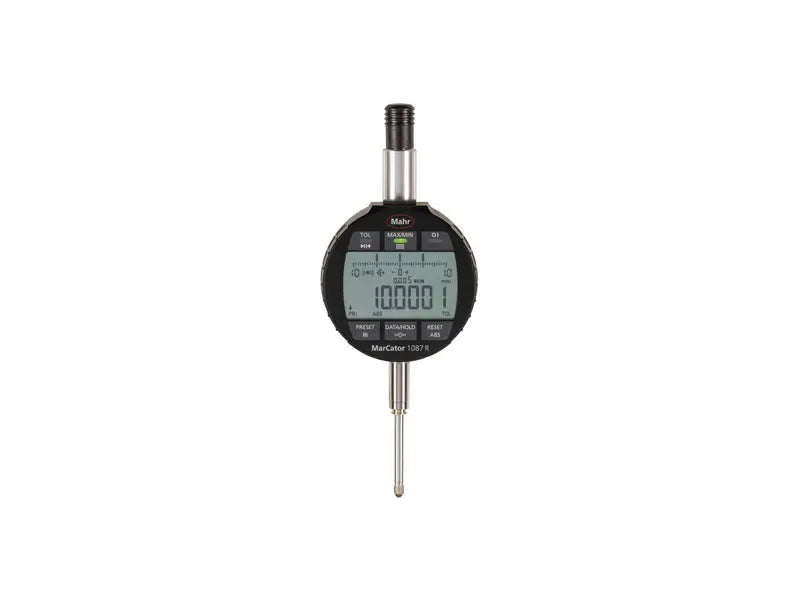

Digital indicator MarCator 1087 Ri-HR
IP protection category: IP 42
Data interface: Integrated Wireless, USB, Digimatic Factory standard
Measuring span in mm: 25mm
Resolution: 0.0001, 0.0005, 0.001, 0.002, 0.005, 0.01
Resolution inches:
Package contains: battery, test certificate, instruction manual, Cardboard box
|
Product type |
1087 Ri-HR |
|
Measuring span in mm |
25 mm |
|
Measuring span (inches) |
1" |
|
Resolution |
0.0001 mm , 0.0005 mm , 0.001 mm , 0.002 mm , 0.005 mm , 0.01 mm |
|
Error limit (mm) |
0.0024 mm |
|
Repeatability mm |
0.0005 mm |
|
Measuring force (N) |
0.65 - 1.15 |
|
Height of digits |
9 mm |
|
Battery type |
CR 2450N (3V Lithium) |
|
Dimensions |
a 151.8 mm | b 23.3 mm | c 26.5 mm | |
Variety of applications for our products
For highest accuracy requirements
Indicator with lowest possible error limit and finest resolution: Resolution 0.1 µm (.00001")
Extensive measuring functions for:
- Static measurements e.g. lengths, distances and length differences
- Dynamic measurements e.g. radial run-out, straightness and flatness, by means of MAX / MIN / MAX-MIN functions
Indicator with lowest possible error limit and finest resolution: Resolution 0.1 µm (.00001")
Extensive measuring functions for:
- Static measurements e.g. lengths, distances and length differences
- Dynamic measurements e.g. radial run-out, straightness and flatness, by means of MAX / MIN / MAX-MIN functions
