Mahr Digital Dial Caliper, MarCator 1087 Ri, Art. no. 4337821
Regular price
Rs. 0.00
+ 18% GST
BEST OFFERS FOR YOU!
Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.
Product Description
Art. no. 4337821

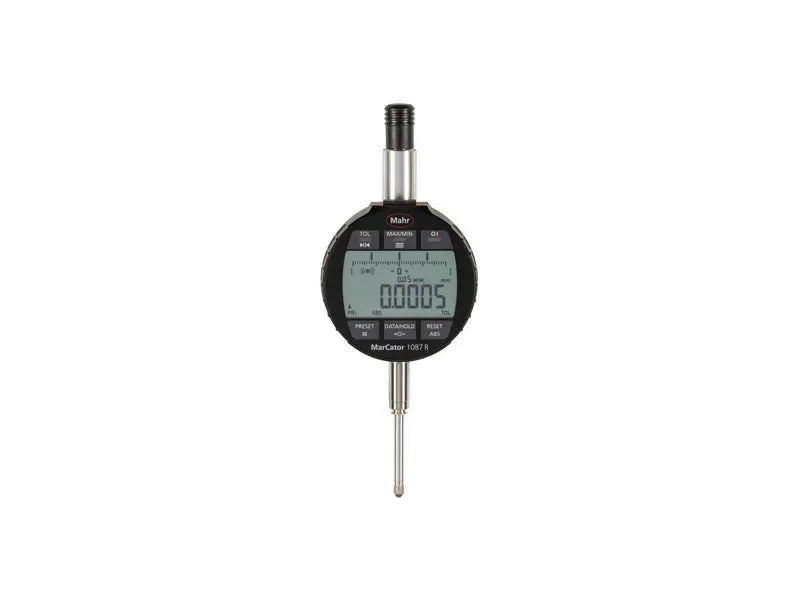

Digital indicator MarCator 1087 Ri
IP protection category: IP 42
Data interface: Integrated Wireless, USB, Digimatic Factory standard
Measuring span in mm: 25mm
Resolution: 0.0005, 0.001, 0.002, 0.005, 0.01
Resolution inches: Package contains: battery, test certificate, instruction manual, Cardboard box
|
Product type |
1087 Ri |
|
Measuring span in mm |
25 mm |
|
Measuring span (inches) |
1" |
|
Resolution |
0.0005 mm , 0.001 mm , 0.002 mm , 0.005 mm , 0.01 mm |
|
Error limit (mm) |
0.004 mm |
|
Repeatability mm |
0.001 mm |
|
Measuring force (N) |
0.65 - 1.15 |
|
Height of digits |
9 mm |
|
Battery type |
CR 2450N (3V Lithium) |
|
Dimensions |
a 151.8 mm | b 23.3 mm | c 26.5 mm | |
Variety of applications for our products
Comprehensive measuring functions for:
- Static measurements such as lengths, distances and length differences
- Dynamic measurements such as radial runout, straightness and flatness via MAX / MIN / MAX-MIN functions
