Mahr Digital Dial Caliper, MarCator 1087 R, Art. no. 4337660
+ 18% GST
BEST OFFERS FOR YOU!
Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.
Product Description
Art. no. 4337660

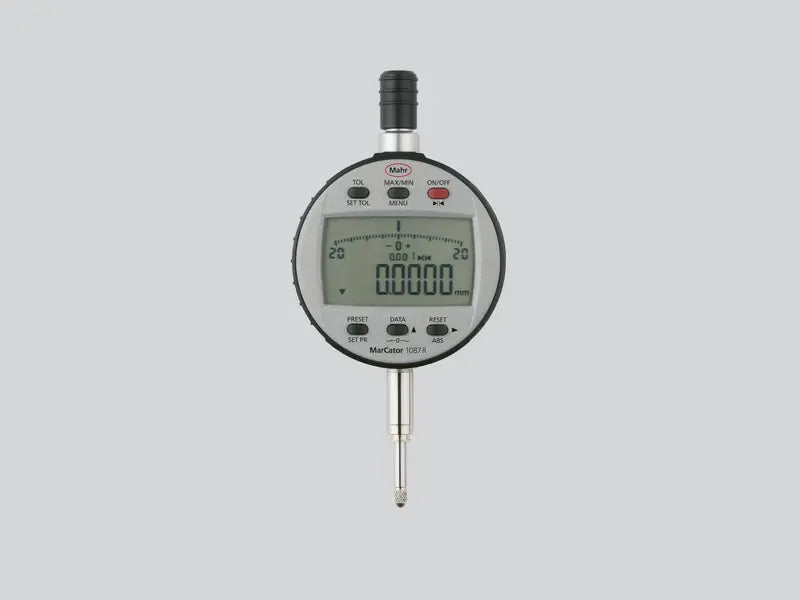

Digital indicator MarCator 1087 R
IP protection category: IP 42
Data interface: Opto RS-232C, Digimatic, USB Factory standard
Measuring span in mm: 12.5mm
Resolution: 0.0005, 0.001, 0.002, 0.005, 0.01
Resolution inches: .00002", .00005", .0001", .0002", .0005"
Package contains: battery, test certificate, instruction manual, Cardboard box
Product information
- High contrast LCD display, thus very clear and safe to read
- Operating and display unit (bezel) can be rotated through 280°
- Immediate measurements due to the Reference System
- Lifter protection cap on the measuring spindle
- Mounting shank and measuring spindle are both made of hardened stainless steel
Technical Specifications
|
Product type |
1087 R |
|
Measuring span in mm |
12.5 mm |
|
Measuring span (inches) |
.5" |
|
Resolution |
0.0005 mm , 0.001 mm , 0.002 mm , 0.005 mm , 0.01 mm |
|
Graduation value |
0,0005 , 0,001 , 0,002 , 0,005 , 0,01 |
|
Graduation value inches |
.000002'' , .00005" , .0001'' , .0002'' , .0005" |
|
Error limit (mm) |
0.004 mm |
|
Repeatability mm |
0.001 mm |
|
Measuring force (N) |
0.65 - 0.9 |
|
Height of digits |
8.5 mm |
|
Range of analog display mm |
± 0,01 , ± 0,02 , ± 0,04 , ± 0,1 , ± 0,2 |
|
Range of analog display inches |
± .0004" , ± .001'' , ± .002" , ± .004" , ± .01'' |
|
Battery type |
CR 2450N (3V Lithium) |
|
Dimensions |
a 126.3 mm | b 23 mm | c 13.5 mm | |
Variety of applications for our products
- Static measurements such as lengths, distances and length differences
- Dynamic measurements such as radial runout, straightness and flatness via MAX / MIN / MAX-MIN functions
