Product Description
Art. no. 4337870

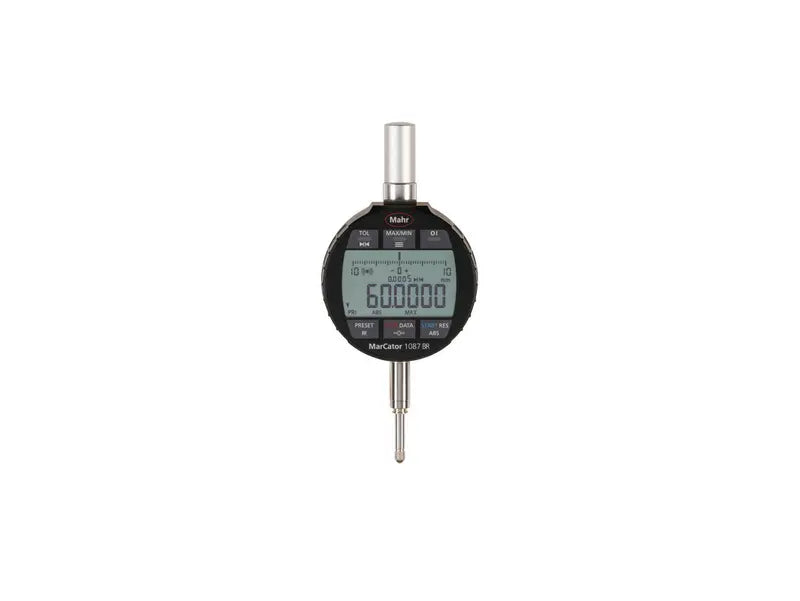

Digital indicator MarCator 1087 BRi
IP protection category: IP 42
Data interface: Integrated Wireless, USB, Digimatic Factory standard
Measuring span in mm: 12.5mm
Resolution: 0.0005, 0.001, 0.002, 0.005, 0.01
Resolution inches:
Package contains: battery, test certificate, instruction manual, Cardboard box
| Product type | 1087 BRi |
| Measuring span in mm | 12.5 mm |
| Measuring span (inches) | .5" |
| Resolution | 0.0005 mm , 0.001 mm , 0.002 mm , 0.005 mm , 0.01 mm |
| Error limit (mm) | 0.004 mm |
| Repeatability mm | 0.001 mm |
| Measuring force (N) | 0.65 - 0.9 |
| Height of digits | 9 mm |
| Battery type | CR 2450N (3V Lithium) |
| Dimensions | a 126.2 mm | b 23.3 mm | c 13.6 mm | |
Variety of applications for our products
Especially for dynamic comparative inside/outside measuring instruments
- Very easy to set up:
The reversal point is automatically determined for a 2-point inside or outside measurement by oscillation in dynamic measuring mode, then the PRESET value (usually corresponds to the exact dimension of the setting standard) is assigned to this reference point with just one press of a button. - During the measurement, the determined extreme value (length measurement) is recorded by the MIN or MAX function and shown on the display.
- In order to be able to carry out fast measuring movements with corresponding measuring reliability, the type 1087 BR(i) internally processes 64 measured values per second.
