Mahr Digital Dial Caliper, MarCator 1087 BRi, Art. no. 4337664
Regular price
Rs. 0.00
+ 18% GST
BEST OFFERS FOR YOU!
Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.
Product Description
Art. no. 4337664
Digital indicator MarCator 1087 BRi
IP protection category: IP 42
Data interface: Integrated Wireless, USB, Digimatic, Opto RS-232C Factory standard
Measuring span in mm: 12.5mm
Resolution: 0.0005, 0.001, 0.002, 0.005, 0.01
Resolution inches: .00002", .00005", .0001", .0002", .0005"
Package contains: battery, test certificate, instruction manual, Cardboard box
Product information
- Integrated wireless transmitter
- High-contrast LCD display
- Operating and display unit can be rotated 280°
- Lift-off cap on end of measuring pin
- Mounting shaft and measuring pin in hardened stainless steel
- Ready to measure immediately thanks to reference system
Technical Specifications
| Product type | 1087 BRi |
| Measuring span in mm | 12.5 mm |
| Measuring span (inches) | .5" |
| Resolution | 0.0005 mm , 0.001 mm , 0.002 mm , 0.005 mm , 0.01 mm |
| Graduation value | 0,0005 , 0,001 , 0,002 , 0,005 , 0,01 |
| Graduation value inches | .000002'' , .00005" , .0001'' , .0002'' , .0005" |
| Error limit (mm) | 0.004 mm |
| Repeatability mm | 0.001 mm |
| Measuring force (N) | 0.65 - 0.9 |
| Height of digits | 8.5 mm |
| Range of analog display mm | ± 0,01 , ± 0,02 , ± 0,04 , ± 0,1 , ± 0,2 |
| Range of analog display inches | ± .0004" , ± .001'' , ± .002" , ± .004" , ± .01'' |
| Battery type | CR 2450N (3V Lithium) |
| Dimensions | a 126.3 mm | b 23 mm | c 13.5 mm | |
Variety of applications for our products

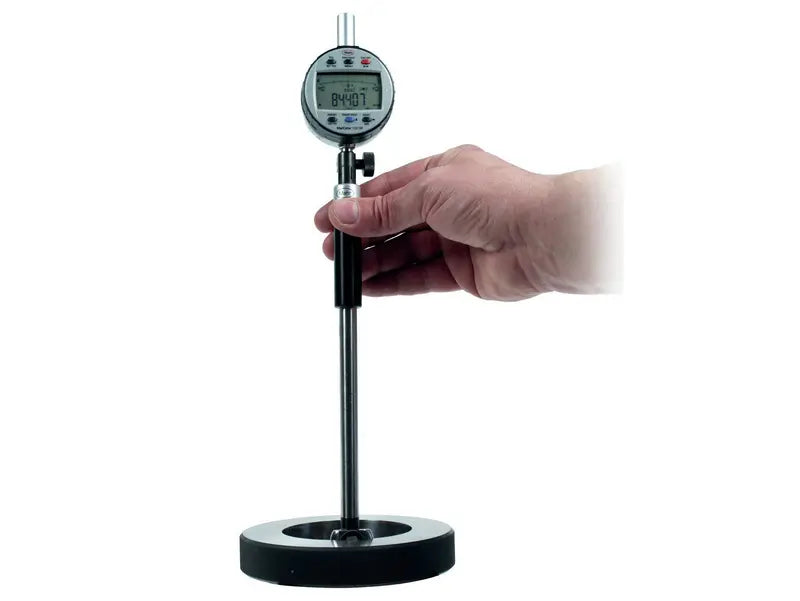

In measurements with a 2-point bore gage the reversing point can be calculated automatically during oscillation. Then a PRESET value can be assigned.
The ACTUAL value measured is saved by the MIN or MAX function and is shown on the display.
The 1087 BRi model can process 64 measured values per second, for fast measuring movements combined with measuring certainty.
The ACTUAL value measured is saved by the MIN or MAX function and is shown on the display.
The 1087 BRi model can process 64 measured values per second, for fast measuring movements combined with measuring certainty.
