Mahr Digital Dial Caliper, MarCator 1086 Ri, Art. no. 4337625
Regular price
Rs. 0.00
+ 18% GST
BEST OFFERS FOR YOU!
Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.
Product Description
Art. no. 4337625

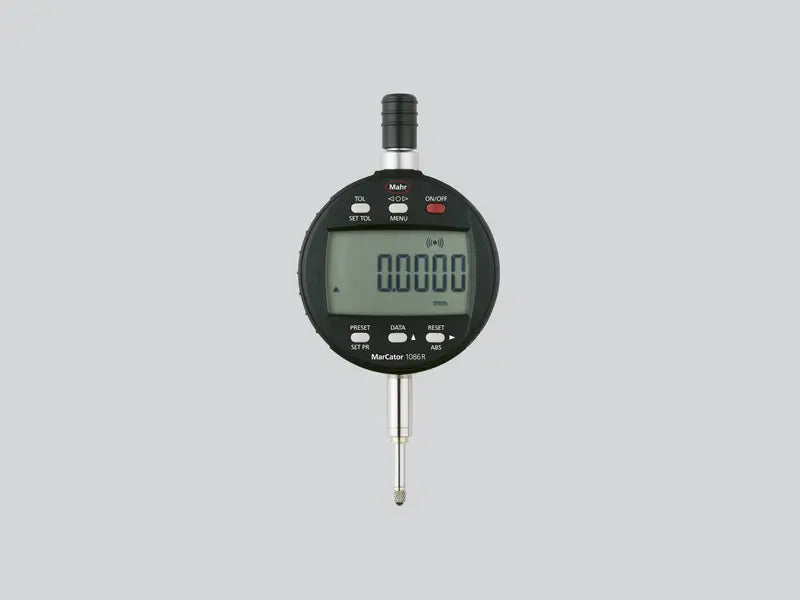

Digital indicator MarCator 1086 Ri
IP protection category: IP 42
Data interface: Integrated Wireless, USB, Digimatic, Opto RS-232C Factory standard
Measuring span in mm: 25mm
Resolution: 0.0005, 0.001, 0.002, 0.005, 0.01
Resolution inches: .00002", .00005", .0001", .0002", .0005"
Package contains: battery, test certificate, instruction manual, Cardboard box
Product information
- Integrated wireless transmitter
- High-contrast LCD display
- Operating and display unit can be rotated 280°
- Mounting shaft and measuring pin in hardened stainless steel
- Ready to measure immediately thanks to reference system
Technical Specifications
| Product type | 1086 Ri |
| Measuring span in mm | 25 mm |
| Measuring span (inches) | 1" |
| Resolution | 0.0005 mm , 0.001 mm , 0.002 mm , 0.005 mm , 0.01 mm |
| Error limit (mm) | 0.004 mm |
| Repeatability mm | 0.001 mm |
| Measuring force (N) | 0.65 - 1.15 |
| Height of digits | 11 mm |
| Battery type | CR 2450N (3V Lithium) |
| Dimensions | a 153.4 mm | b 26.8 mm | c 26.5 mm | |
Variety of applications for our products
Comprehensive measuring function for static measurements such as lengths, distances and length differences
