Mahr Digital Dial Caliper, MarCator 1086 Ri, Art. no. 4337135
Regular price
Rs. 0.00
+ 18% GST
BEST OFFERS FOR YOU!
Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.
Product Description
Art. no. 4337135

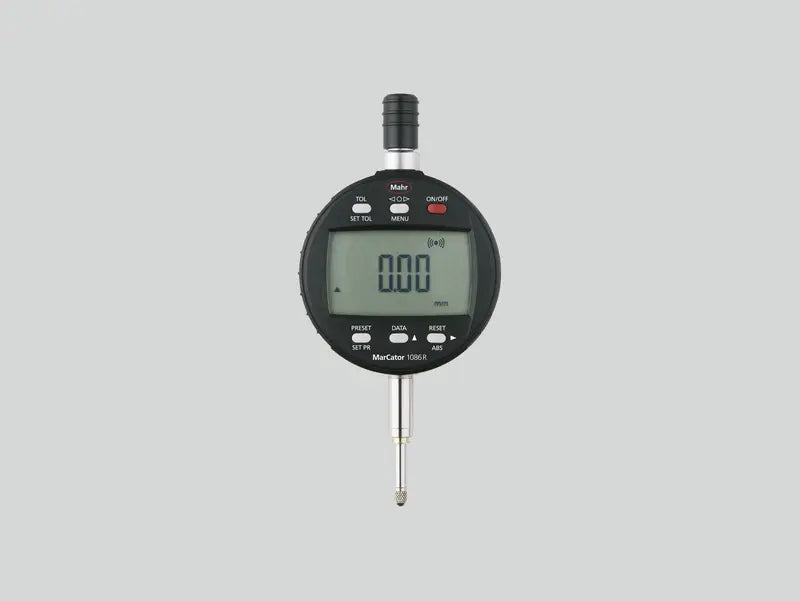

Digital indicator MarCator 1086 Ri
IP protection category: IP 42
Data interface: Integrated Wireless, USB, Digimatic, Opto RS-232C Factory standard
Measuring span in mm: 25mm
Resolution: 0.01
Resolution inches: .0005"
Package contains: battery, test certificate, instruction manual, Cardboard box
- Integrated wireless transmitter
- High-contrast LCD display
- Operating and display unit can be rotated 280°
- Mounting shaft and measuring pin in hardened stainless steel
- Ready to measure immediately thanks to reference system
Technical Specifications
|
Product type |
1086 Ri |
|
Measuring span in mm |
25 mm |
|
Measuring span (inches) |
1" |
|
Resolution |
0.01 mm |
|
Error limit (mm) |
0.02 mm |
|
Repeatability mm |
0.01 mm |
|
Measuring force (N) |
0.65 - 1.15 |
|
Height of digits |
11 mm |
|
Battery type |
CR 2450N (3V Lithium) |
|
Dimensions |
a 153.4 mm | b 26.8 mm | c 26.5 mm | |
Variety of applications for our products
Comprehensive measuring function for static measurements such as lengths, distances and length differences
