Mahr Digital Dial Caliper, MarCator 1086 R-HR, Art. no. 4337698
+ 18% GST
BEST OFFERS FOR YOU!
Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.
Product Description
Art. no. 4337698

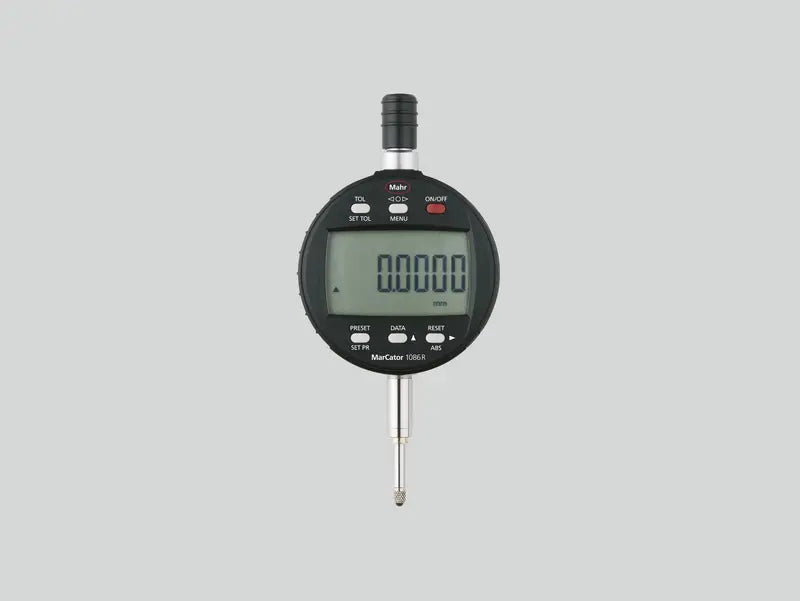

Digital indicator MarCator 1086 R-HR
IP protection category: IP 42
Data interface: Digimatic, Opto RS-232C, USB Factory standard
Measuring span in mm: 25mm
Resolution: 0.0001, 0.0005, 0.001, 0.002, 0.005, 0.01
Resolution inches: .00001", .00002", .00005", .0001", .0002", .0005"
Package contains: battery, test certificate, instruction manual, Cardboard box
- High contrast LCD display, thus very clear and safe to read
- Operating and display unit (bezel) can be rotated through 280°
- Lifter protection cap on the measuring spindle
- Mounting shank and measuring spindle are both made of hardened stainless steel
- Immediate measurements due to the Reference System
Technical Specifications
|
Product type |
1086 R-HR |
|
Measuring span in mm |
25 mm |
|
Measuring span (inches) |
1" |
|
Resolution |
0.0001 mm , 0.0005 mm , 0.001 mm , 0.002 mm , 0.005 mm , 0.01 mm |
|
Error limit (mm) |
0.0024 mm |
|
Repeatability mm |
0.0005 mm |
|
Measuring force (N) |
0.65 - 1.15 |
|
Height of digits |
11 mm |
|
Battery type |
CR 2450N (3V Lithium) |
|
Dimensions |
a 153.4 mm | b 26.8 mm | c 26.5 mm | |
Variety of applications for our products
Indicator with lowest possible error limit and finest resolution: Resolution 0.1 µm
Extensive measuring functions for static measurements e.g. lengths, distances and length differences
