Mahr Digital Dial Caliper, MarCator 1086 R, Art. no. 4337620
Regular price
Rs. 0.00
+ 18% GST
BEST OFFERS FOR YOU!
Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.
Product Description
Art. no. 4337620

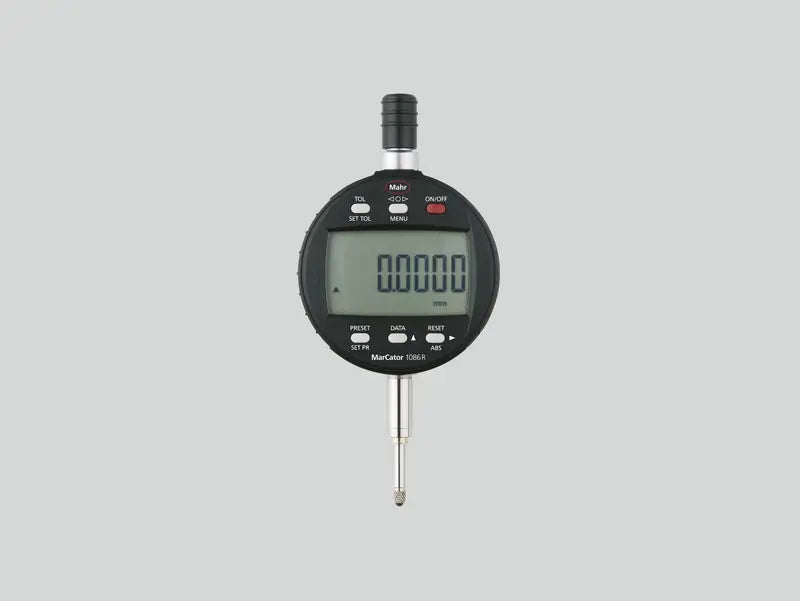

Digital indicator MarCator 1086 R
IP protection category: IP 42
Data interface: Digimatic, Opto RS-232C, USB Factory standard
Measuring span in mm: 12.5mm
Resolution: 0.0005, 0.001, 0.002, 0.005, 0.01
Resolution inches: .00002", .00005", .0001", .0002", .0005"
Package contains: battery, test certificate, instruction manual, Cardboard box
Product information
- High contrast LCD display, thus very clear and safe to read
- Operating and display unit (bezel) can be rotated through 280°
- Lifter protection cap on the measuring spindle
- Mounting shank and measuring spindle are both made of hardened stainless steel
- Immediate measurements due to the Reference System
Technical Specifications
| Product type | 1086 R |
| Measuring span in mm | 12.5 mm |
| Measuring span (inches) | .5" |
| Resolution | 0.0005 mm , 0.001 mm , 0.002 mm , 0.005 mm , 0.01 mm |
| Error limit (mm) | 0.004 mm |
| Repeatability mm | 0.001 mm |
| Measuring force (N) | 0.65 - 0.9 |
| Height of digits | 11 mm |
| Battery type | CR 2450N (3V Lithium) |
| Dimensions | a 126.3 mm | b 23 mm | c 13.5 mm | |
Variety of applications for our products
Comprehensive measuring function for static measurements such as lengths, distances and length differences
