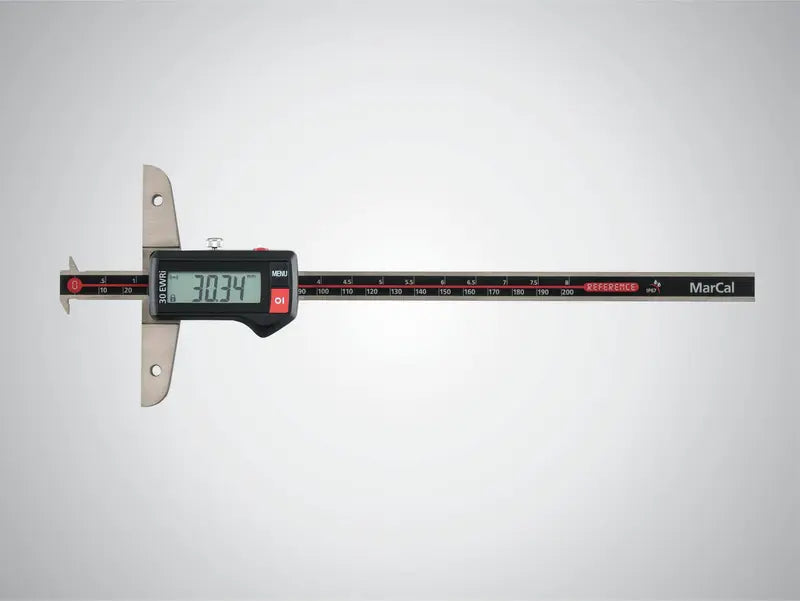

Mahr Digital Calipers, MarCal 30 EWRi-D, Art. no. 4126533
Regular price
Rs. 0.00
+ 18% GST
BEST OFFERS FOR YOU!
Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.
- High contrast digit display
- Locking screw above
- Lapped guideway
- Measuring surfaces made of steel
- Slide and beam made of hardened stainless steel
- Immediate measurements due to the Reference System
- Raised guideway for the protection of the scale
- Excellent resistance against dust, coolants and lubricants
- Dirt wipers are integrated in the slide
Technical Specifications
MarCal 30 EWRi-D | Art. no. 4126533 |
|
|---|---|
Measuring range |
0 - 200 |
Measuring range |
0 - 8" |
Resolution mm/inch |
0.01 / .0005" |
Error limit (mm) |
0.03 mm |
Error limit inches |
.001" |
Standard |
ISO 13385-2 |
Battery type |
CR 2032 (3V Lithium) |
Dimensions |
a 281 mm | b 100 mm | c 12 mm | |
Variety of applications for our products
Measuring groove widths and distances between grooves
Special advantage: The two measuring surfaces - downwards and upwards to the measuring direction - are precisely machined in one plane, so the set zero position applies to both measuring surfaces.
