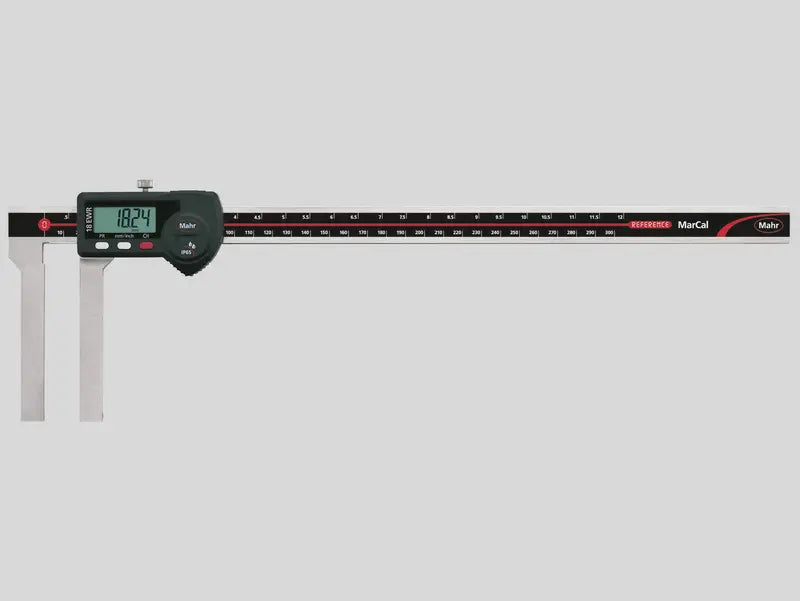

Mahr Digital Calipers, MarCal 18 EWR-V, Art. no. 4112723
Regular price
Rs. 0.00
+ 18% GST
BEST OFFERS FOR YOU!
Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.
Product Description
Art. no. 4112723
Digital universal caliper MarCal 18 EWR-V
Measuring range: 0 - 500 mm
Resolution mm/inch: 0.01 mm / 0.0005 inch
Depth rod:
Data interface: USB, Opto RS-232C, Digimatic
IP protection category: IP 65
Package contains: anvils, battery, instruction manual, case
- High contrast digit display
- Locking screw above
- Immediate measurements due to the Reference System
- Excellent resistance against dust, coolants and lubricants
- Dirt wipers are integrated in the slide
- Slide and beam made of hardened stainless steel
- Measuring faces for outside measurement
- Thread M2.5 measuring jaws to accommodate measuring anvils for internal and external measurements
Technical Specifications
|
MarCal 18 EWR-V | Art. no. 4112723 |
|
|---|---|
|
Measuring range |
0 - 500 |
|
Measuring range |
0 - 20" |
|
Resolution mm/inch |
0.01 / .0005" |
|
Error limit (mm) |
0.08 mm |
|
Error limit inches |
.003" |
|
Standard |
Factory standard |
|
Battery type |
CR 2032 (3V Lithium) |
|
Dimensions |
a 680 mm | b 100 mm | c 16 mm | d 81 mm | e 25 mm | |
Variety of applications for our products
- For inner and outer measurements of recesses, grooves, etc.
- Individual adjustment by means of measuring anvils with M2.5 thread
