Mahr Digital Calipers, MarCal 16 EWRi-V, Art. no. 4118907
+ 18% GST
BEST OFFERS FOR YOU!
Enjoy 2% off on your first purchase! Copy the coupon code and apply it at checkout.
Product Description
Art. no. 4118907
Digital universal caliper MarCal 16 EWRi-V
Measuring range: 0 - 200 mm
Resolution mm/inch: 0.01 mm / 0.0005 inch
Depth rod: rectangular
Data interface: Integrated Wireless
IP protection category: IP 67

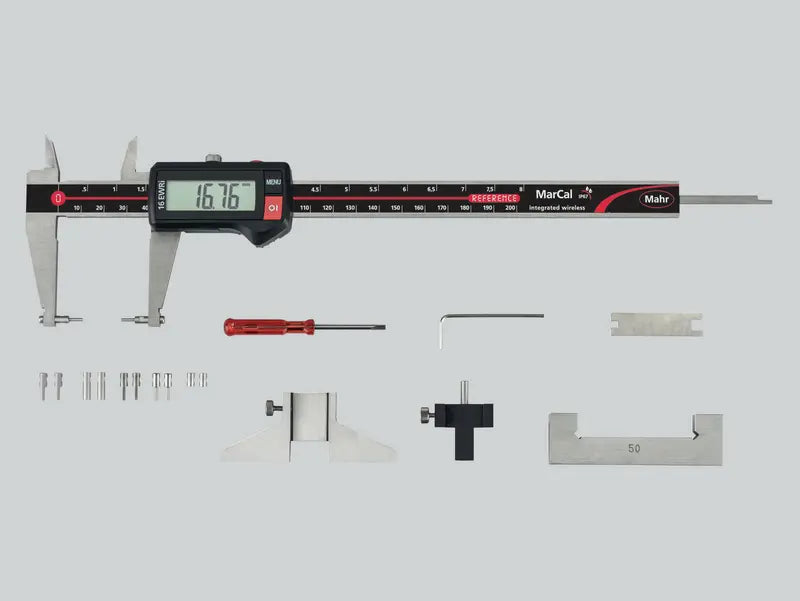

Package contains: setting gage for inside measurement 16 Eel, measuring force device 16 Ec, depth measuring bridge 16 Em, anvils for outside measurement 16 Eea 1-3, anvils for inside measurement 16Eei 1-3, battery, test certificate, instruction manual, case
- High contrast digit display
- Locking screw above
- Lapped guideway
- Measuring blade for inside measurements
- Slide and beam made of hardened stainless steel
- Step measuring function
- Immediate measurements due to the Reference System
- Raised guideway for the protection of the scale
- Excellent resistance against dust, coolants and lubricants
- Dirt wipers are integrated in the slide
Technical Specifications
|
MarCal 16 EWRi-V | Art. no. 4118907 |
|
|---|---|
|
Measuring range |
0 - 200 |
|
Measuring range |
0 - 8" |
|
Resolution mm/inch |
0.01 / .0005" |
|
Error limit (mm) |
0.03 mm |
|
Error limit inches |
.001" |
|
Standard |
Factory standard |
|
Battery type |
CR 2032 (3V Lithium) |
|
Depth rod |
rectangular |
|
Dimensions |
b 48 mm | c 16.5 mm | d 285 mm | e 16 mm | |
Variety of applications for our products
- Can be used as standard calipers (four measuring directions) with standard accessories for measuring recesses, grooves, etc.
- Can be used with special accessories for measuring threads, bores and gears
